The DAC70502DRXR is a dual-channel 1LB INL 14-bit SPI voltage output digital-to-analog converter (DAC) manufactured by (TI). With its high precision and micro-packaging features, the DAC70502DRXR is highly suitable for the following applications: gain and offset voltage calibration, current or voltage setting point setting, and power control.

In addition, the DAC70502DRXR device features a 2.5V, 5ppm/°C internal reference, providing full-scale output voltage ranges of 1.25V, 2.5V, or 5V.

Performance parameters

Digit number: 14

Digital-to-analog converter number: 1

Establishment time: -

Output type: Voltage-Buffered

Differential output: None

Data interfaces: I2C, serial, SPI

Reference type: Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±1, ±1

Architecture: R-2R

Operating temperature: -40°C to 125°C

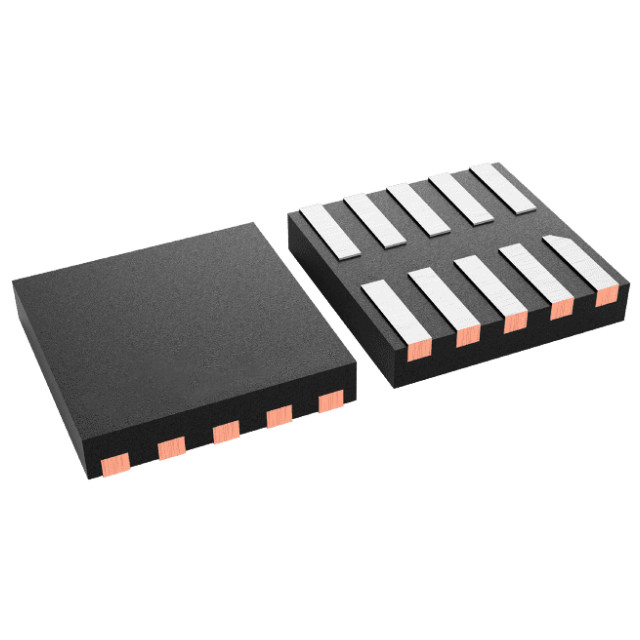

Package/Housing: 10-WFDFN

Application scenarios

The DAC70502DRXR is suitable for a variety of application scenarios that require high-precision analog-to-digital conversion, including but not limited to:

Industrial control

Testing and measuring equipment

Communication system

Instruments and meters
