The 20-bit DAC11001BPFBR is a high-precision, low-noise, voltage-output, single-channel digital-to-analog converter (DAC). The DAC11001BPFBR is designed with monotonicity and can provide excellent linearity across all output ranges. This DAC has the following main characteristics:

20-bit monotonicity: 1LSB DNL (maximum value)

Integral linearity: 1LSB INL (maximum value)

Low noise: 7nV/√Hz

Low interference independent of code: 1nV-s

Outstanding THD: -118 dB at 20kHz fOUT and 1MHz fDAC

Fast and stable: 1µs

Flexible output range: VREFPF to VREFNF

Integrated precision feedback resistor

50MHz, 4-wire SPI-compatible interface

Read back

Chrysanthemum chain

Temperature range: -40 °C to +125°C

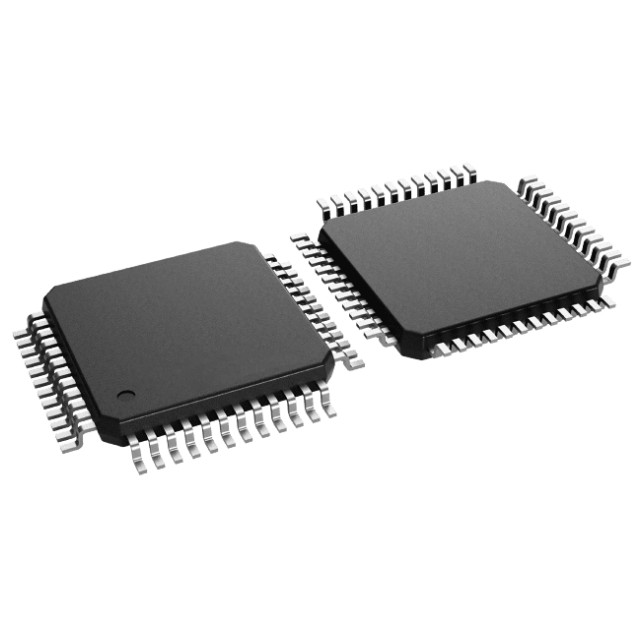

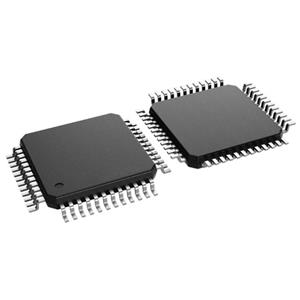

Package: 48-pin TQFP

The unbuffered voltage output can provide low noise performance (7nV/√Hz) and fast stabilization time (1µs), making this device highly suitable for low-noise, fast control loop and waveform generation applications. The DAC11001BPFBR combines an enhanced anti-spike pulse circuit with code-independent ultra-low interference (1nV-s), enabling a clean waveform ramp and ultra-low total harmonic distortion (THD).
