The DAC80504RTER is a low-power, four-channel, buffered voltage output DAC with 16-bit resolution. This device features a low-drift, 2.5V internal reference, eliminating the need for an external precision reference in most applications. The user-selectable gain configuration provides full-scale output voltages of 1.25V (gain = 1/2), 2.5V (gain = 1), or 5V (gain = 2). The DAC80504RTER is powered by a single 2.7V to 5.5V power supply, designated as monotonic, and can provide a high linearity of ±1LSB INL.

Technical Specification

Number of digits: 16

Digital-to-analog converter number: 4

Establishment time: 5µs (typical value)

Output type: Voltage-Buffered

Differential output: None

Data interface: SPI

Reference type: Internal

Voltage - Power supply, simulation: 2.7V to 5.5V

Voltage - Power supply, digital: 2.7V to 5.5V

INL/DNL (LSB) : ±0.5, ±0.5

Architecture: R-2R

Operating temperature: -40°C to 125°C

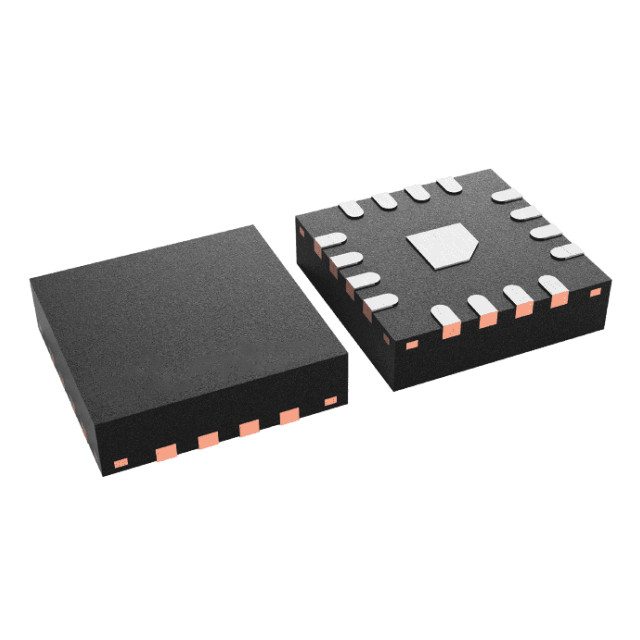

Package/Shell: 16-WFQFN

Application scenarios

The DAC80504RTER is suitable for applications that require high-precision analog-to-digital conversion, including:

Optical fiber network

Wireless infrastructure

"Industrial automation"

• Data acquisition system
