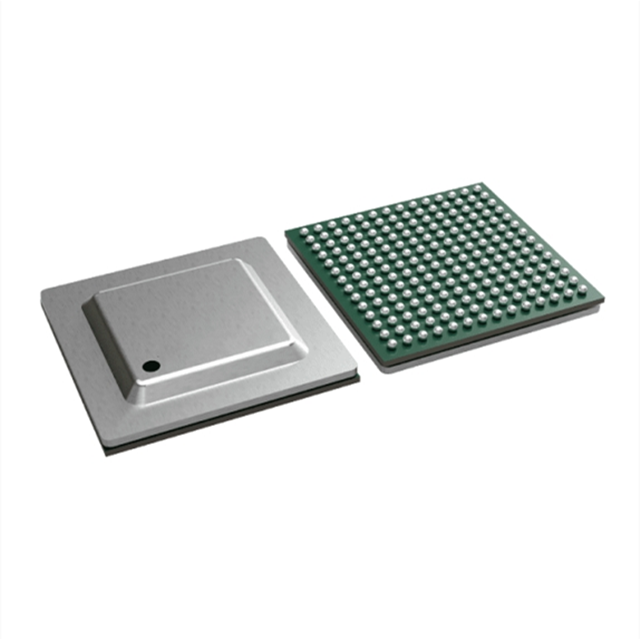

The TSMU818A030AMO is a high performance, highly integrated 8-channel 18-bit, 30V, 100mA output high capacitance driver parameter measurement unit (PMU) ‌. Its main features include:

8-channel four-quadrant PMU

FV, FI, FZ (high impedance state), MV and MI functions

Programmable current range

Internal range: ±5µA, ±40µA, ±200µA, ±2mA

Up to ±100mA when using external RSENSE

Selection of 30V FV range and asymmetric range

It operates stably under conditions of up to 10µF CLOAD

Channel-independent DAC

An 18-bit forced DAC with multiple voltage ranges

16-bit offset and voltage clamping DAC

15-bit current-clamp DAC

Offset error and gain error calibration, with true 18-bit endpoint performance

Dual-configuration state digital architecture

Fast current clamping

The TSMU818A030AMO consists of eight independent channels. Each channel includes a voltage output DAC (used to set the programmable input level of the forced voltage amplifier) and two clamp input Dacs. Five resistance-based programmable force and current measurement ranges are provided, ranging from ±5µA to ±100mA, among which four ranges use on-chip detection resistors.

Application scenarios

The TSMU818A030AMO is suitable for a variety of application scenarios, including:

Memory Test ‌ : used to test the electrical characteristics of a storage device.

Semiconductor testing ‌ : Evaluating the performance parameters of semiconductor devices.

Source measurement unit ‌ : Perform precise source and measurement operations in multiplexing or individual measurements ‌.
