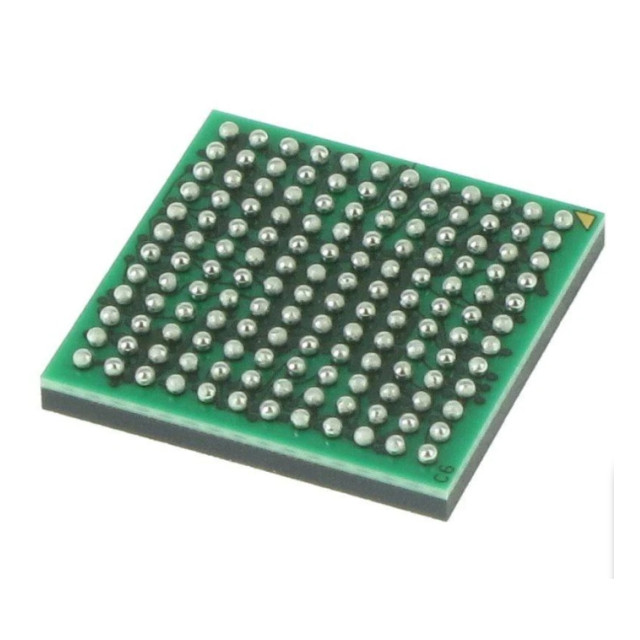

The TSMU818A030ACQ is a high-performance, highly integrated parameter measurement unit (PMU), consisting of eight independent channels. Each channel includes a voltage output DAC (used to set the programmable input level of the forced voltage amplifier) and two clamp input Dacs. Five resistance-based programmable force and current measurement ranges are provided, ranging from ±5µA to ±100mA, among which four ranges use on-chip detection resistors.

Its main features include

• 8-channel four-quadrant PMU

-FV, FI, FZ (high impedance state), MV and MI functions

Programmable current range

- Internal ±5µA, ±40µA, ±200µA, ±2mA range

- Up to ±100mA when using external RSENSE

• 30V FV range and asymmetric range selection

• Stable operation at up to 10µF CLOAD

• Channel independent DAC

- 18-bit forced DAC with multiple voltage ranges

- 16-bit offset and voltage clamping DAC

-15-bit current-clamp DAC

• Offset error and gain error calibration with true 18-bit endpoint performance

• Dual configuration state digital architecture

• Rapid current clamping

Application scenarios

The TSMU818A030ACQ is widely used in the following scenarios:

Memory test

Semiconductor testing

Source measurement unit
