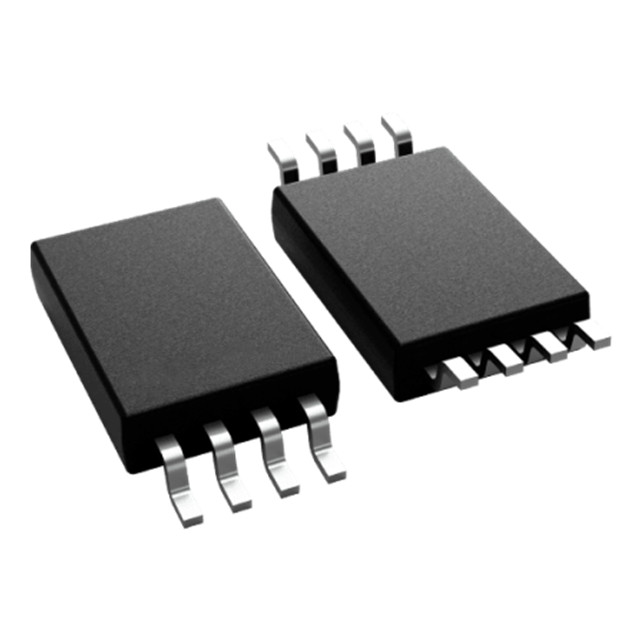

The LMK1C1104PWR buffer is a modular, high-performance, low-offset, universal clock buffer. This device features high performance, such as low additional jitter, low skew and a wide operating temperature range. The LMK1C1104PWR supports synchronous output enable control (1G). When 1G is at a low level, it switches the output to a low level state. This clock buffer can operate in environments of 1.8V, 2.5V and 3.3V, and its operating temperature range is from -40 °C to 125°C.

Main features

High-performance 1:4 LVCMOS clock buffer

Extremely low output offset < 50ps

Extremely low additional jitter < 50fs (maximum value)

7.5fs (typical value, when VDD = 3.3V)

10fs (typical value, when VDD = 2.5V)

19.2fs (typical value, when VDD = 1.8V)

The propagation delay is extremely low: < 3ns

Synchronous output enable

Supply voltage: 3.3V, 2.5V or 1.8V

A 3.3V tolerance input can be provided under all power supply voltages

fmax=250MHz (at 3.3V) fmax=200MHz (at 2.5V and 1.8V)

Operating temperature range: -40°C to 125°C

It adopts an 8-pin thin structure and small-sized package

Application scenarios

The LMK1C1104PWR is suitable for clock allocation applications that require high frequency, low jitter and low latency, such as:

Factory automation and control

Telecommunication equipment

Data centers and enterprise computing

Power grid infrastructure

Motor driver

Medical imaging
