The 9ZXL1231EKILFT clock buffer is a second-generation performance-enhanced 12-channel output DB1200ZL differential buffer for PCIe Gen1-4 and UPI. This device is a pin-compatible upgraded version of the 9ZXL1231A, offering significantly improved phase jitter performance and enhanced system safety features. Fixed external feedback can maintain low drift for critical QPI/UPI applications.

Main specifications

Product: 9ZXL1231EKILFT

PLL: Yes

Main uses: Intel QPI, PCI Express (PCIe)

Input: Clock

Output: HCSL

Number of circuits: 1

Ratio - Input: Output: 1:12

Differential - Input: Output: Yes/Yes

Frequency - Maximum value: 400MHz

Voltage - Power supply: 3.135V to 3.465V

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

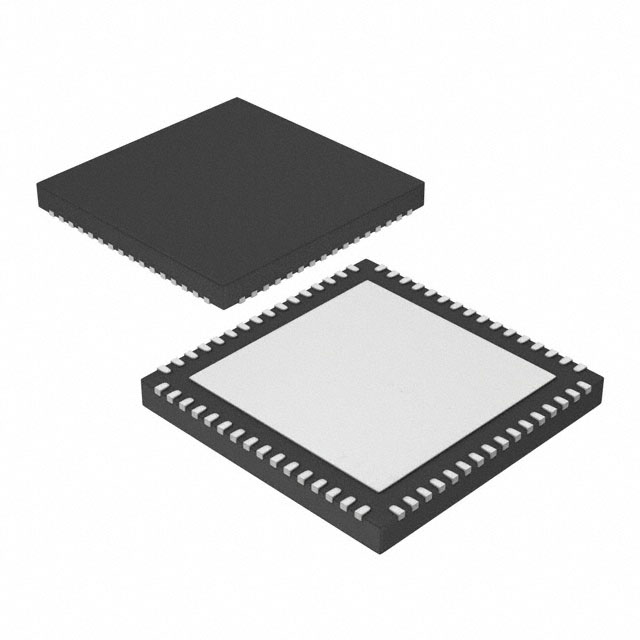

Package/Housing: 64-VFQFPN (9x9)

Application field

The 9ZXL1231EKILFT clock buffer is suitable for scenarios with high requirements for clock accuracy and space efficiency, such as servers, storage, network devices, and solid-state drives. It can replace traditional discrete components, reduce system costs, and enhance reliability.
