Service Telephone:86-755-83294757
Trade Name:Clock Buffer
Brand:Renesas
Particular Year:25+

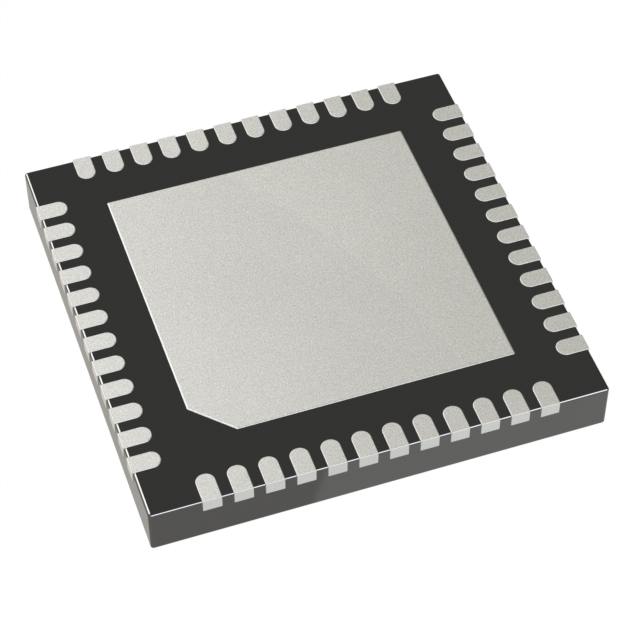

Package:48-VFQFPN
Delivery Date:New and original
Stock: 2000pcs
The 9ZXL0851AKLF is a low-power 8-channel output differential buffer that meets all performance requirements of the Intel DB1200ZL specification. It is suitable for PCI-Express Gen1/2/3 or QPI/UPI applications and uses fixed external feedback to maintain low drift to meet demanding QPI/UPI applications.
9ZXL0851AKLF has the following features:
8 to 0.7V low-power HCSL compatible output pairs
Zo = Ohmic low-pass HCSL output; Save power consumption and circuit board space - no termination resistor required.
Space-saving 48-pin VFQFPN package
A fixed feedback path with a 0ps input-to-output delay
8 OE# pins; Hardware control for each output
PLL or bypass mode; PLL can eliminate the jitter of the input clock
Operate in 100MHz or 133MHz PLL mode; Supports PCIe and QPI applications
Optional PLL bandwidth; Minimize the jitter peak of the downstream PLL
Spread spectrum compatibility Track the extended input clock to achieve low EMI
The jitter during the cycle is less than 50ps
Output skew < 65 ps
The input-output delay variation is less than 50ps
The phase jitter of the third-generation PCIe is less than 1.0ps RMS
QPI/UPI 9.6GT/s 12UI phase jitter < 0.2ps RMS
Application field
The 9ZXL0851AKLF is used as a buffer for Romley, Grantley and Purley servers, SSD drives and PCIe.
Model
Brand
Package
Quantity
Describe
Renesas
48-VFQFPN
2000
8-channel output DB800ZL PCIe zero-latency/fan-out clock buffer
Renesas
VFQFPN-32
2000
Low Additive Jitter 2:8 Buffer with Universal Differential Outputs
