Trade Name:Clock Buffer
Brand:Renesas
Particular Year:25+
Package:20-VFQFPN
Delivery Date:New and original
Stock: 2000pcs
The RC19002AGNT is a 2-channel output PCIe Gen7 clock buffer that is backward compatible with earlier PCIe products. The RC19002AGNT offers ultra-low additive jitter and reduced in-to-out latency performance to achieve better design margins, and integrates multiple features to realize simpler and more robust designs.
In addition, the RC19002AGNT integrates power failure tolerance (PDT) and flexible startup timing control (FSS) features, simplifying the system design. This buffer can drive source-terminated and dual-terminated loads, with a working frequency up to 400MHz.
The RC19002AGNT mainly has the following features
The LP-HCSL output eliminates up to 8 termination resistors
Complies with the PCIe standards from generation 1 to Generation 7
Drive source terminated and dual-terminated loads
Optional output impedances of 85ω and 100ω
The leakage loss (signal loss) indicates the output
Drop capacitance difference (PDT
Flexible Startup Sorting (FSS
Automatic Clock Stop (ACP
The dedicated OE# pin for the control group output

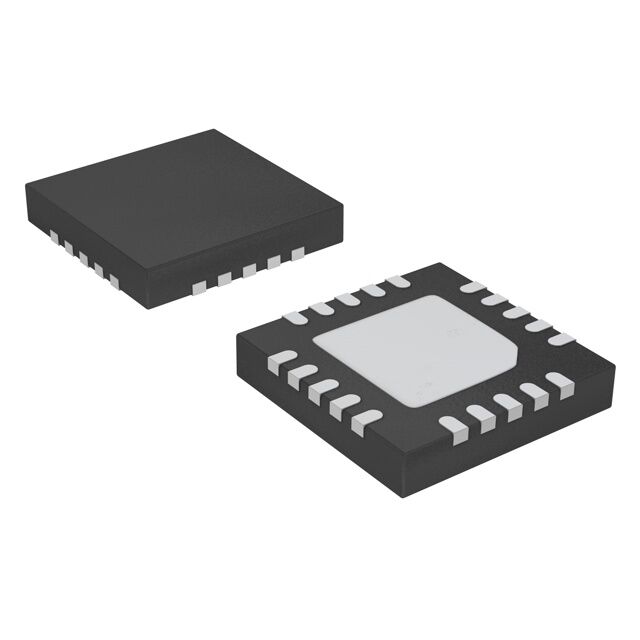

3mm × 3mm 20-VFQFPN package
Typical applications
▪ Cloud/high-performance computing
▪ nVME storage
▪ Network
▪ AI Accelerator
Model
Brand
Package
Quantity
Describe
Renesas
48-VFQFPN
2000
8-channel output DB800ZL PCIe zero-latency/fan-out clock buffer
