Service Telephone:86-755-83294757
Trade Name:Clock Buffer
Brand:Renesas
Particular Year:25+

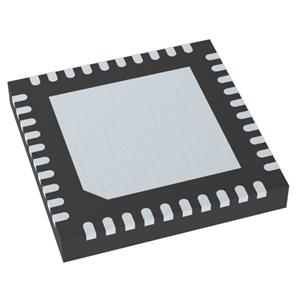

Package:VFQFPN-40
Delivery Date:New and original
Stock: 2000pcs
The 9ZXL0651EKILF is a second-generation DB800ZL series clock buffer launched by Renesas, mainly targeting high-speed data transmission scenarios such as PCIe, QPI/UPI. The following are its core parameters:
PLL: Yes
Main uses: Intel QPI, PCI Express (PCIe)
Input: Clock
Output: HCSL
Number of circuits: 1
Ratio - Input: Output: 1:6
Differential - Input: Output: Yes/Yes
Frequency - Maximum value: 400MHz
Voltage - Power supply: 3.135V to 3.465V
Operating temperature: -40°C to 85°C
Installation type: Surface mount type
Package/Housing: 40-VFQFPN (5x5)
Compared with the previous generation product, the phase jitter performance of 9ZXL0651EKILF has been significantly optimized. It supports a phase jitter of less than 0.5ps RMS for PCIe Gen4 clock signals, and a jitter of less than 0.2ps RMS for the QPI/UPI interface at a rate of ≥9.6GB/s. In addition, the 9ZXL0651EKILF incorporates an SMBus write lock pin, enhancing system security. Support dual-mode control of loop bandwidth in both hardware and software to simplify the configuration process.
Typical applications
The 9ZXL0651EKILF clock buffer is mainly used in servers, storage systems, JBOD devices and network communication fields, providing common clock or independent reference clock solutions and supporting spread spectrum technology to reduce electromagnetic interference.
Model
Brand
Package
Quantity
Describe
Renesas
48-VFQFPN
2000
8-channel output DB800ZL PCIe zero-latency/fan-out clock buffer
