The LMK1D2104LRHDR is a low-noise dual-clock buffer that can allocate one input to four LVDS outputs. Its input can be LVDS, LVPECL, HCSL, CML or LVCMOS. The LMK1D2104LRHDR is specifically designed to drive 50Ω transmission lines. When driving the input in single-ended mode, apply an appropriate bias voltage to the unused negative input pin.

Technical Specification

Type: Clock buffer

Number of circuits: 2

Ratio - Input: Output: 1:4

Differential - Input: Output: Yes/Yes

Input: CML, HCSL, LVCMOS, LVDS, LVPECL

Output: LVDS

Frequency - Maximum: 2 GHz

Voltage - Power supply: 1.71V - 1.89V, 2.375V - 2.625V, 3.135V - 3.465V

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

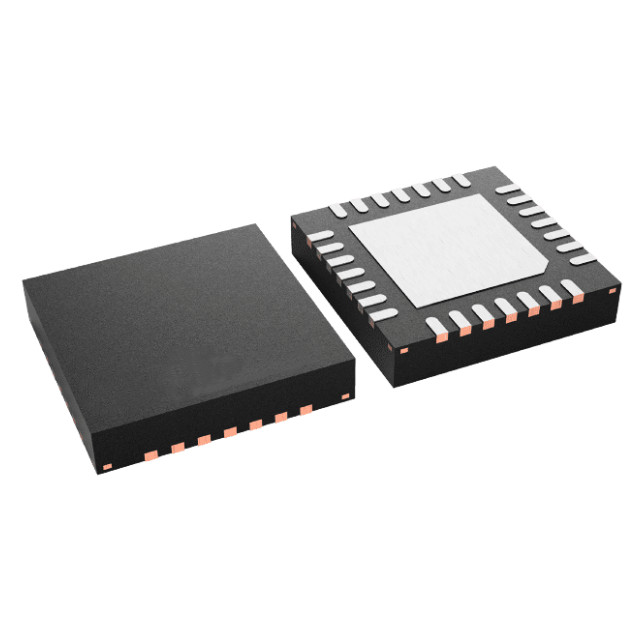

Package/Shell: 28-VFQFN

The application of LMK1D2104LRHDR buffer

Telecommunications and Networks

Medical imaging

Testing and Measurement

Wireless infrastructure

Professional audio, video and signage
