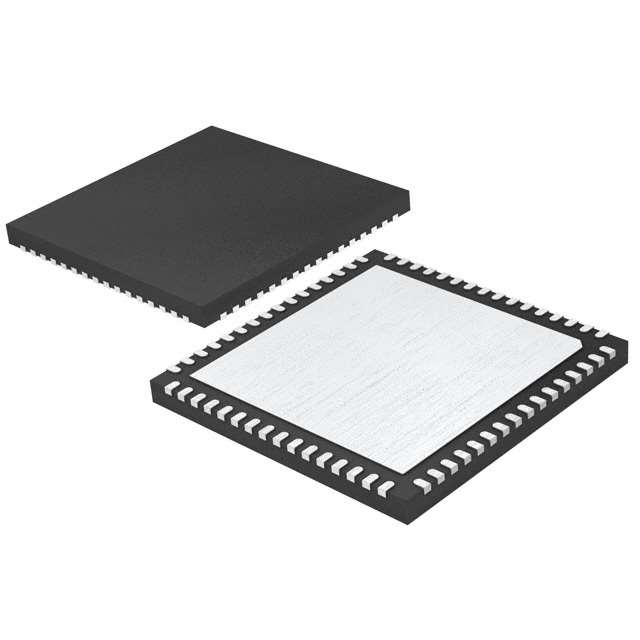

ADS4242IRGC: Dual, 65MSPS, 14-bit Analog to Digital Converter (ADC), VQFN-64

Model: ADS4242IRGC

Package: VQFN-64

Type: Analog to Digital Converter (ADC)

ADS4242IRGC Specifications:

Number of Bits: 14

Sample Rate (per second): 65M

Number of Inputs: 2

Input Type: Differential

Data Interface: LVDS - Parallel, Parallel

Configuration: S/H-ADC

Ratio - S/H:ADC: 1:1

Number of A/D Converters: 2

Architecture: Pipelined

Reference Type: Internal

Voltage - Powered, Analog: 1.7V ~ 1.9V

Voltage - Powered, Digital : 1.7V ~ 1.9V

Characteristics: Synchronous Sampling

Operating Temperature: -40°C ~ 85°C

Package/Case: 64-VFQFN Unpadded

Supplier Device Package: 64-VQFN (9x9)

Mounting Type: Surface Mount

ADS4242IRGC Product Features:

Ultra-low power, 1.8V single supply, CMOS output:

183mW total power consumption at 65MSPS

277mW total power consumption at 125MSPS

332mW total power consumption at 160MSPS

High Dynamic Performance:

Spurious Free Dynamic Range (SFDR) at 170MHz 88dBc

Signal-to-noise ratio (SNR) of 71.4dBFS at 170MHz

Crosstalk: >90dB at 185MHz

Programmable gain up to 6dB supports SNR/SFDR tradeoffs

DC offset correction

Output Interface Options:

1.8V Parallel CMOS Interface

Double Data Rate (DDR) with Programmable Swing Support Low Voltage Differential Signaling (LVDS):

Standard Swing: 350mV

Low swing: 200mV

Supports input clock amplitudes down to 200mV PP

Package: VQFN-64 (9.00mm × 9.00mm)
