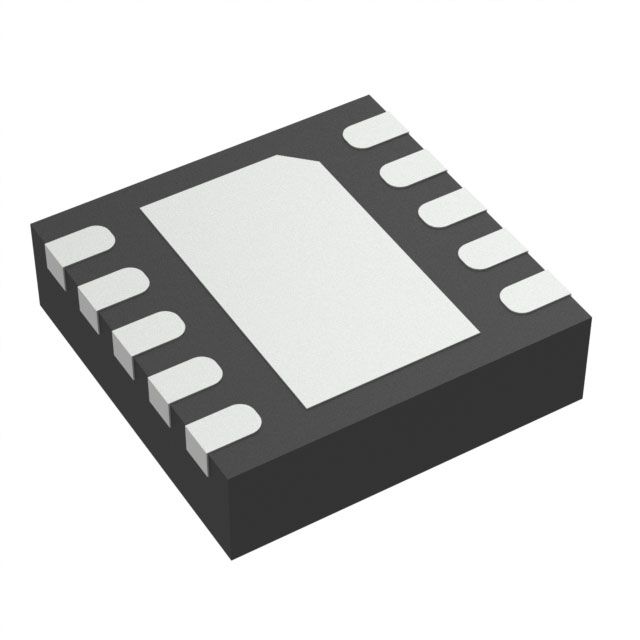

ADS8861IDRCR: 1MSPS, 16-Bit Single-Channel SAR ADC with True Differential Input, SPI Interface

The ADS8861IDRCR is a 16-bit, 1MSPS, true differential input, analogue to digital converter (ADC). The device operates with a 2.5V to 5V external reference to provide a wide signal range without additional signal conditioning. This reference voltage setting is independent of, and can exceed, the analogue supply voltage (AVDD).

Basic Information:

Model: ADS8861IDRCR

Package: VSON-10

Type: Analog to Digital Converter (ADC)

Number of Bits: 16

Sampling Rate (per second): 1M

Voltage - Supplied, Analogue: 2.7V ~ 3.6V

Voltage - Supplied, Digital: 1.65V ~ 3.6V

Operating Temperature Range: -40° C ~ 85°C C ~ 85°C

ADS8861IDRCR Product Features:

Sampling Rate: 1MHz

No Delay Output

Unipolar, True Differential Input Range:

-VREF to +VREF

Wide Common-Mode Voltage Range:

0V to VREF, Common-Mode Rejection Ratio (CMRR) 90dB (min)

SPI-compatible Serial Interface with

Daisy Chain Option

Excellent AC and DC Performance:

Signal-to-Noise Ratio (SNR): 96dB, Total Harmonic Distortion (THD): -115dB

Integral Non-Linear (INL): ±1.0 LSB (max)

Differential Non-Linear (DNL): ±1.0 LSB (max), 16-bit No Lost Code (NMC)

Wide Operating Range:

AVDD: 2.7V to 3.6V

DVDD: 2.7V to 3.6V

(AVDD-independent)

REF: 2.5V to 5V (AVDD-independent)

Operating Temperature: -40°C to +85°C

Low Power Dissipation:

5.5mW at 1MSPS

0.55mW at 100kSPS

55µW at 10kSPS

Breakdown Current (AVDD): 50nA

Full Scale Step Stabilisation to 16 bits: 290ns
