DAC530A2YBHR: 300mA, 10-bit Current-Source Digital-to-Analog Converter (DAC), DSBGA-16

Type: DAC530A2YBHR

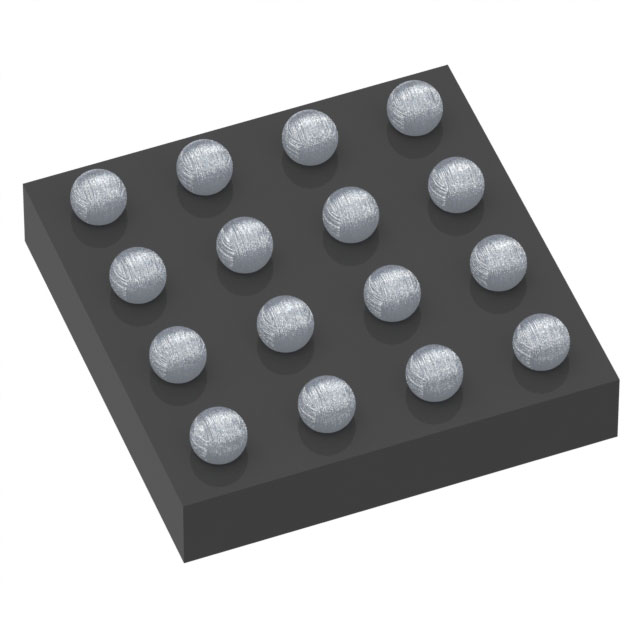

Package: DSBGA-16

Type: Current-Source DAC- -Digital to Analog Converter

Description Details:

The DAC530A2YBHR is a 10-bit buffered voltage output and current output intelligent digital-to-analogue converter (DAC). The DAC530A2YBHR supports current sourcing and can be used for linear control of laser diodes and micro motors. The device supports a high-resistance power-save mode and a high-resistance output in the event of a power failure for voltage outputs.

DAC530A2YBHR Product Features:

Current Source DAC:

1LSB DNL

Two ranges: 300 mA and 220 mA

770mV margin

Dual (DAC532A3W only) Voltage Output DAC:

1LSB DNL

1x, 1.5x, 2x, 3x, and 4x Gain

Programmable Comparator Mode on Channel 1

Provides High Impedance Outputs when VDD is Off

High Impedance and resistor pull-down power-save modes

50MHz SPI-compatible interface

Auto-detect I2C or SPI

1.62V VIH (VDD = 5.5V)

General Purpose Inputs/Outputs (GPIOs) configurable for multiple functions

Generate predefined waveforms: sine, cosine, triangle, sawtooth

User-programmable Non-Volatile Memory (NVM)

Uses either an internal reference or a power supply as the reference Reference

Wide operating voltage range:

Power supply: 3V to 5.5V

Temperature: -40˚C to +125˚C
