DAC37J84IAAV: 1.6GSPS, Quad, 16-Bit Digital-to-Analog Converter (DAC), FCCSP-144

Model: DAC37J84IAAV

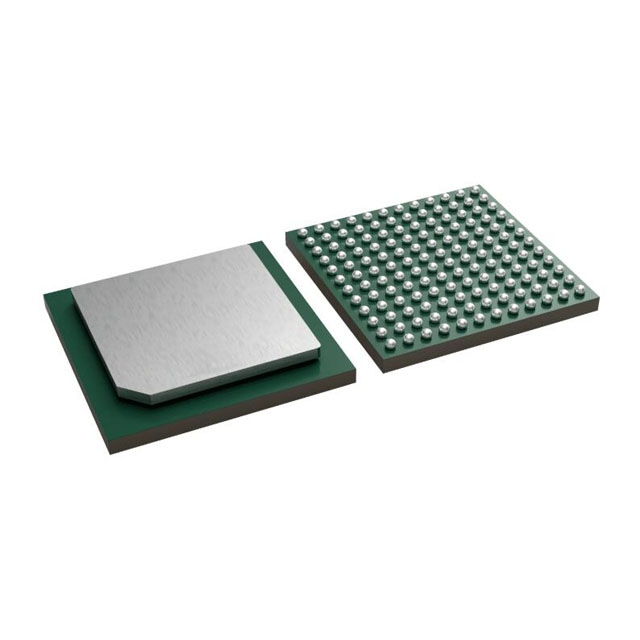

Package: FCCSP-144

Type: 16-Bit Digital-to-Analog Converter (DAC)

The DAC37J84IAAV is a low-power, 16-bit, quad-channel, 1.6 GSPS digital-to-analog converter (DAC) with a JESD204B interface. The device includes features that simplify complex transmitter architectures. Fully bypassable 2x to 16x digital interpolation filters with more than 90dB of band attenuation simplify data interfacing and filter reconstruction. An on-chip 48-bit numerically controlled oscillator (NCO) and separate complex mixer enable flexible and accurate carrier signal placement.

DAC37J84IAAV Product Features:

Resolution: 16-bit

Maximum Sample Rate: 1.6GSPS

Maximum Input Data Rate: 1.23GSPS

JESD204B Interface

8 JESD204B Serial Input Channels

Maximum Bit Rate per Channel 12.5Gbps

Subclass 1 Multi-DAC Synchronisation

On-chip Very Low Jitter Phase-Locked Loop (PLL)

Optional 1x - 16x Interpolation

Stand-alone complex mixer with 48-bit Numerically Controlled Oscillator (NCO) / or ±n x Fs/8

Wide-band digital quadrature modulator correction

Sinx/x correction filter

Fractional sampling group delay correction

Multi-band mode: digital sum of stand-alone complex signals

3/4-wire Serial Control Integrated Bus (SPI): 1.5V - 1.8V

Integrated Temperature Sensor

JTAG Boundary Scan

with Dual Channel DAC37J82/DAC38J82 series terminal compatible

Power dissipation: 1.8W at 2.5GSPS

Package: 10mm x 10mm, 144-ball flip-chip ball grid array (BGA)

DAC37J84IAAV Applications:

Cellular Base Stations

Diversity Transmission

Wideband Communications

Direct Digital Synthesis (DDS) Instruments

Millimeter Wave/Microwave Backhaul

Automated Test Equipment

Cable Infrastructure
