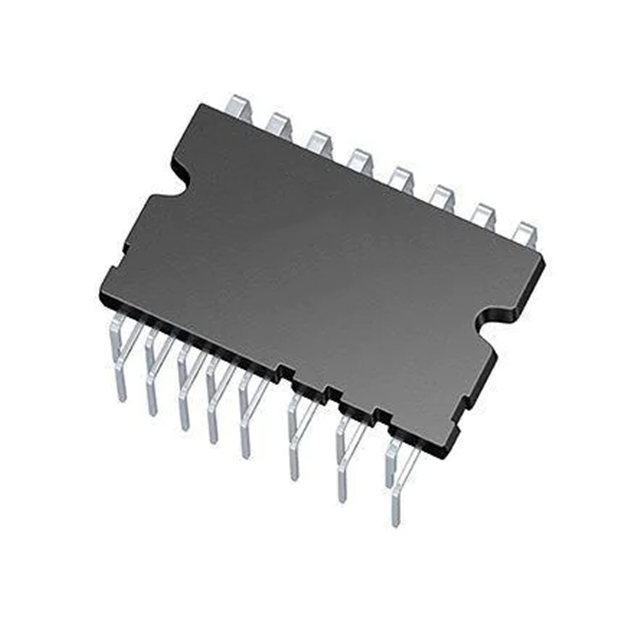

IGCM20F60GA is A 600 V, 20 A CIPOS™ Mini three-phase intelligent power module (IPM) launched by Infineon. Its main specifications are as follows:

Type: IGBT

Configuration: 3 phases

Current: 20 A

Voltage: 600 V

Voltage - Isolation: 2000Vrms

Installation type: Through hole

Package/Housing: 24-PowerDIP

The features of IGCM20F60GA include:

Based on reverse conduction IGBT technology

Rated current of 20 A inverter

Robust and durable SOI gate driver technology

Integrate bootstrap functions

Overcurrent shutdown

All six switches are turned off during the protection period

All channels are equipped with under-voltage locking

Prevent cross-conduction

Built-in temperature monitoring

The rated power of the motor can reach up to 1800 W at 10 kHz

UL Certification

The IGCM20F60GA integrates multiple power and control components to enhance reliability, optimize PCB size and reduce system costs. By leveraging multiple configurations, the IGCM20F60GA is suitable for controlling frequency converters in a wide range of applications, such as air conditioners, washing machines, refrigerators, vacuum cleaners, compressors, and industrial drives up to 3 kW.
