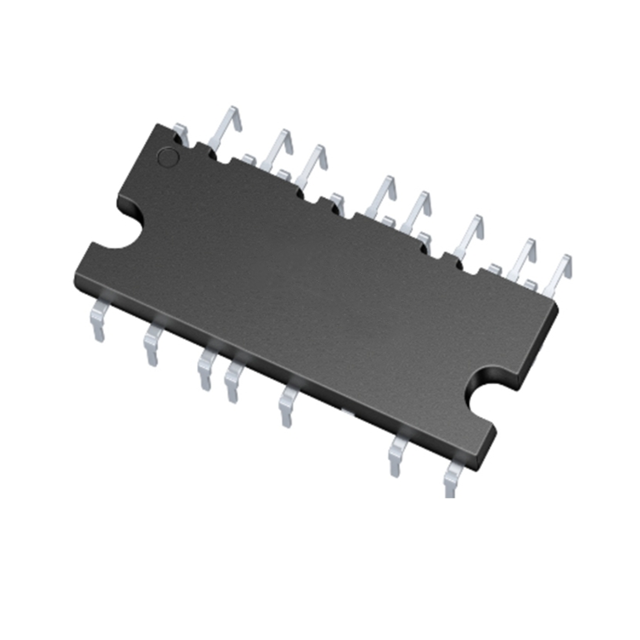

For picture reference, please see the specifications
< >

Commodity Model:IM241-L6S1B

Trade Name:IPM Module

Brand:INFINEON

Particular Year:25+

Package:DIP-23

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IM241-L6S1B
Package
DIP-23
Describe
600 V, 6 A CIPOS™ Micro three-phase intelligent power module

Product Description

The IM241-L6S1B CIPOS™ Micro intelligent power module (IPM) is a compact three-phase intelligent power module, suitable for low-power (i.e., up to 450W when using a heat sink) motor drive applications. These applications include ventilators, circulation pumps, air purifiers, dishwashers and refrigerator compressor drivers. The IM241-L6S1B is packaged in DIP 29x12 and features multiple protection characteristics, including precise overcurrent protection and a UL-certified temperature sensor.


The main features of IM241-L6S1B include:

The reverse-conducting IGBT Gen 2 (RCD2) has been optimized for motor drive

Both fast and slow versions are available to achieve low loss and low EMI operation

NTC temperature monitoring

Precise overcurrent turn-off (±5%)

Fault reporting and programmable fault clearing

Advanced input filter with breakdown protection

When the emitter is open-circuited, single shunt resistance sensing and bridge arm shunt resistance sensing can be achieved

Isolation voltage: 2000VRMS, 1 minute

HV H3TRB certification

UL Certification

These features make the IM241-L6S1B suitable for low-power motor-driven applications such as pumps, fans and other small household appliances ‌.


Associated Products

Model

Brand

Package

Quantity

Describe

IGCM20F60GA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 20 A three-phase intelligent power module

IGCM15F60GA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 15 A three-phase intelligent power module

IGCM04G60HA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 4 A three-phase intelligent power module

IGCM06G60GA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 6 A three-phase intelligent power module

IM241-L6T2B

INFINEON

DIP-23

1500

600 V, 6 A CIPOS™ Micro three-phase intelligent power module

IM111-X6Q1B

INFINEON

IQFN-37

1500

CIPOS™ Nano 600 V, 2 A full-bridge Intelligent Power Module

IM12B15CC1

INFINEON

DIP-24

1500

1200 V, 15 A CIPOS™ Maxi three-phase intelligent Power Module (IPM)

PSS20S92E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module

PSS30S92E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 30 A three-phase variable frequency power supply module

PSS20S93E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module
