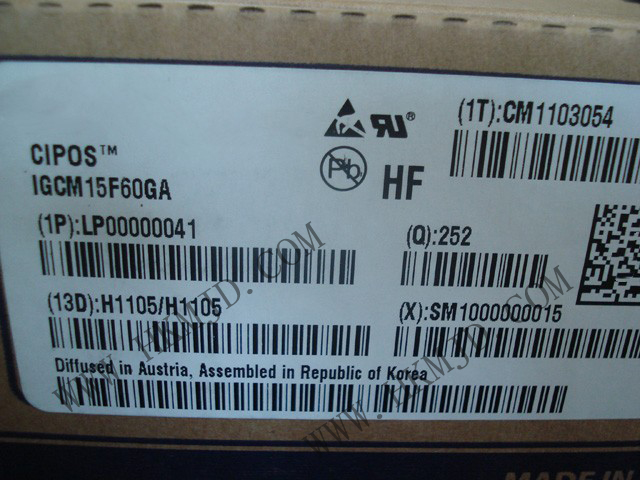

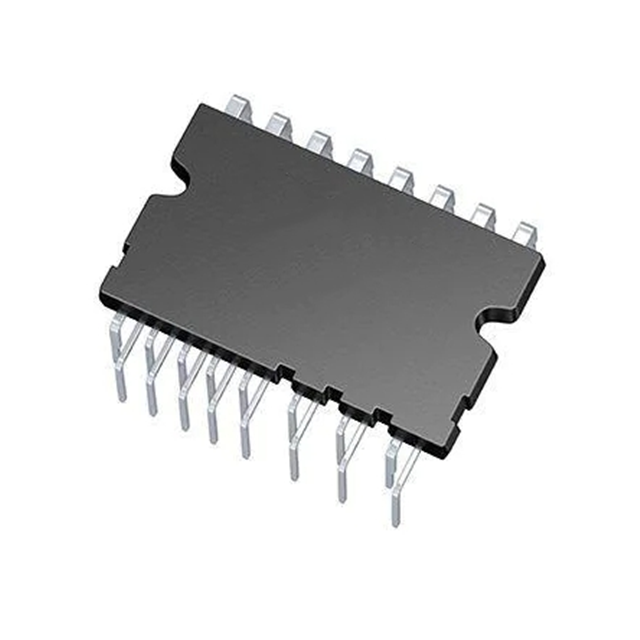

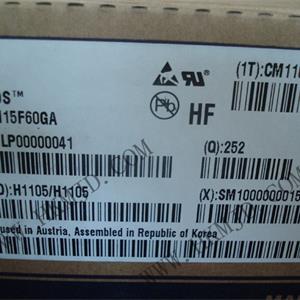

For picture reference, please see the specifications
< >

Commodity Model:IGCM15F60GA

Trade Name:IPM Module

Brand:INFINEON

Particular Year:25+

Package:MDIP-24

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IGCM15F60GA
Package
MDIP-24
Describe
CIPOS™ Mini 600 V, 15 A three-phase intelligent power module

Product Description

The IGCM15F60GA is A 600 V, 15 A CIPOS™ Mini three-phase intelligent power module (IPM) with an open emitter and in a DIP 36x21 package. The IGCM15F60GA offers cost-optimized efficiency, combining reverse conduction (RC) IGBT with excellent heat conduction and electrical isolation, making it suitable for motor drive applications.

Its main characteristics are as follows:

Based on reverse conduction IGBT technology

Rated current of 15 A inverter

Robust and durable SOI gate driver technology

Integrate bootstrap functions

Overcurrent shutdown

All six switches are turned off during the protection period

All channels are equipped with under-voltage locking

Prevent cross-conduction

Built-in temperature monitoring

The rated power of the motor can reach up to 1600 W at 10 kHz

UL Certification


Application scenarios

The IGCM15F60GA is suitable for various motor drive applications, including but not limited to:

Refrigerator

Washing machine

Household air conditioner

Door machine drive device

Motor driver


Associated Products

Model

Brand

Package

Quantity

Describe

IGCM20F60GA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 20 A three-phase intelligent power module

IGCM04G60HA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 4 A three-phase intelligent power module

IGCM06G60GA

INFINEON

MDIP-24

1500

CIPOS™ Mini 600 V, 6 A three-phase intelligent power module

IM241-L6S1B

INFINEON

DIP-23

1500

600 V, 6 A CIPOS™ Micro three-phase intelligent power module

IM241-L6T2B

INFINEON

DIP-23

1500

600 V, 6 A CIPOS™ Micro three-phase intelligent power module

IM111-X6Q1B

INFINEON

IQFN-37

1500

CIPOS™ Nano 600 V, 2 A full-bridge Intelligent Power Module

IM12B15CC1

INFINEON

DIP-24

1500

1200 V, 15 A CIPOS™ Maxi three-phase intelligent Power Module (IPM)

PSS20S92E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module

PSS30S92E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 30 A three-phase variable frequency power supply module

PSS20S93E6-AG

MITSUBISHI

Module

1000

Ultra-small DIPIPM 600 V 20 A three-phase variable frequency power supply module
