Service Telephone:86-755-83294757
Trade Name:IPM Module
Brand:INFINEON
Particular Year:25+
Package:DIP-23
Delivery Date:New and original
Stock: 1500pcs

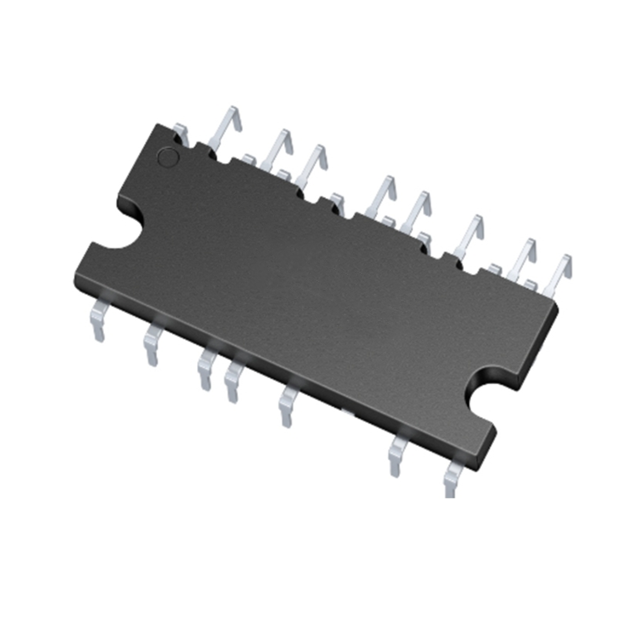

The IM241-L6T2B is A CIPOS™ Micro intelligent power module based on 600 V, 6 A three-phase RCD2 IGBT. The IM241-L6T2B adopts the DIP 29x12 package and features an open emitter. It offers a fully functional compact inverter solution for low-power motor drive applications such as fans, pumps, and light-load electrical appliances.
Feature description
The reverse-conducting IGBT Gen 2 (RCD2) has been optimized for motor drive
Both fast and slow versions are available to achieve low loss and low EMI operation
NTC temperature monitoring
Precise overcurrent turn-off (±5%)
Fault reporting and programmable fault clearing
Advanced input filter with breakdown protection
When the emitter is open-circuited, single shunt resistance sensing and bridge arm shunt resistance sensing can be achieved
Isolation voltage: 2000VRMS, 1 minute
HV H3TRB certification
UL Certification
The advantages of IM241-L6T2B are as follows:
The system efficiency is improved by optimizing the conduction loss
It is fully functional and features multiple protection functions
Highly integrated, easy to design, and space-saving for the system
Flexible design capabilities have been achieved through different packaging and lead choices
Optimize EMI performance
Heat sink installation holes have been added to facilitate better heat dissipation
Application field
IM241-L6T2B is suitable for low-power motor-driven applications such as pumps, fans and other small household appliances .
