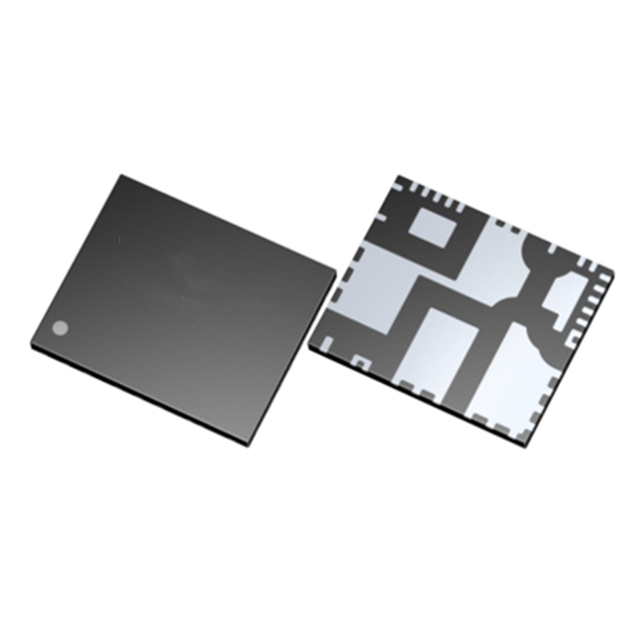

For picture reference, please see the specifications
< >

Commodity Model:IM111-X6Q1B

Trade Name:IPM Module

Brand:INFINEON

Particular Year:25+

Package:IQFN-37

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IM111-X6Q1B
Package
IQFN-37
Describe
CIPOS™ Nano 600 V, 2 A full-bridge Intelligent Power Module

Product Description

The IM111-X6Q1B CIPOS™ Nano intelligent power module (IPM) is a highly integrated power module, suitable for efficient consumer and light industrial applications. The IM111-X6Q1B adopts a full-bridge configuration and is designed for rectifier, converter and inverter stages in power management circuits and motor drivers. These applications include fans, hair dryers, air purifiers and circulation pumps. This device adopts the innovative Power QFN package, which uses PCB copper traces to dissipate heat for the module.


The main features of IM111-X6Q1B are as follows:

Integrate gate driver and bootloader functions

Overcurrent protection and fault reporting

Low 0.28Ω RDS (on), 600V CoolMOS™

Under-voltage locking of the two channels

Breakdown protection

The matching propagation delay of all channels

dv/dt optimized for the trade-off between loss and EMI

Advanced input filter

Compatible with 3.3V input logic

The power range of the motor is 80-200 watts

Minimum isolation of 1500VRMS


Application scenarios

IM111-X6Q1B is suitable for a variety of application scenarios, including:

Linear refrigeration compressor

High-efficiency single-phase motor drive

DC-AC inverter
