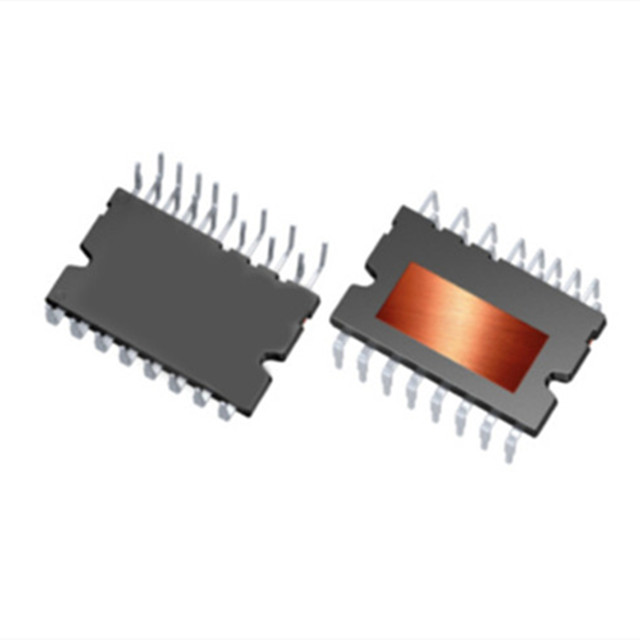

For picture reference, please see the specifications
< >

Commodity Model:IM12B15CC1

Trade Name:IPM Module

Brand:INFINEON

Particular Year:25+

Package:DIP-24

Delivery Date:New and original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IM12B15CC1
Package
DIP-24
Describe
1200 V, 15 A CIPOS™ Maxi three-phase intelligent Power Module (IPM)

Product Description

IM12B15CC1 is A 1200 V, 15 A CIPOS™ Maxi three-phase intelligent power module based on IGBT7. It adopts DIP 36x23D packaging and has an open emitter. It is a compact inverter solution with excellent heat conduction performance and comprehensive functions. IM12B15CC1 is suitable for industrial drives, fans and pumps, HVAC, and other motor drives and active power filter applications.

Its main features include:

Based on 1200 V TRENCHSTOP™ IGBT7

The power can reach up to 3000 W at a frequency of 10 kHz

Robust 1200 V SOI gate driver

Overcurrent shutdown

Under-voltage locking

When protecting, all six switches are turned off

Temperature monitoring

Prevent direct passage

UL Certification


The advantages of IM12B15CC1 are as follows:

Outstanding thermal performance

Low switching loss

Suitable for applications with limited space

Compact size


Application field

The IM12B15CC1 is suitable for a variety of motor drive applications, including industrial drives, fans, pumps and HVAC systems, etc. Its excellent thermal conductivity and protection function make it outstanding in industrial drives, fans, pumps and HVAC systems ‌.
