Service Telephone:86-755-83294757

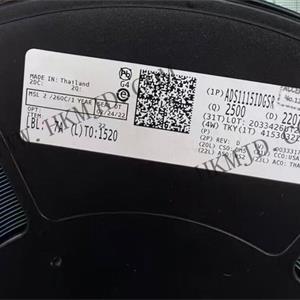

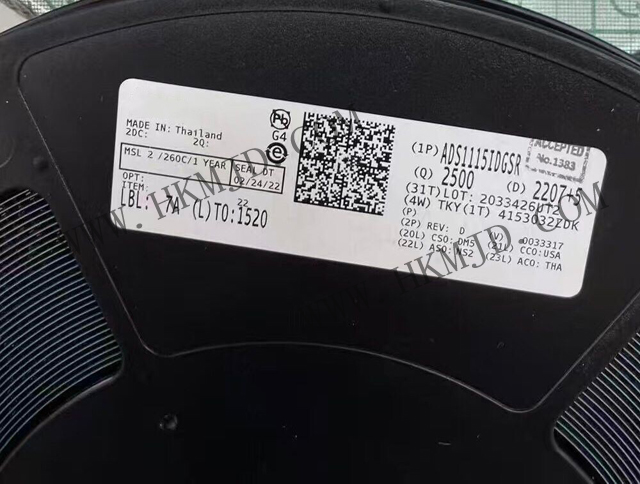

Trade Name:Analogue-to-digital Converter - ADC
Brand:TI
Particular Year:22+
Package:VSSOP-10
Delivery Date:New and Original
Stock: 15000pcs
The ADS1115IDGSR is a 16-bit low-power precision analogue-to-digital converter (ADC) that is I2C-compatible and comes in a leadless VSSOP-10 package. The ADS1115IDGSR device features a low-drift voltage reference and oscillator. It also includes a programmable gain amplifier (PGA) and a digital comparator. In addition to these features, these devices offer a wide operating supply voltage range, making them ideal for power-constrained and space-constrained sensor measurement applications.
The ADS1115IDGSR device achieves a maximum data conversion rate of 860 samples per second (SPS). The PGA provides an input range from ±256mV to ±6.144V, enabling precise measurement of both small and large signals. The ADS1115IDGSR includes an input multiplexer (MUX) that supports dual differential input or quad single-ended input measurements. Digital comparators in the ADS1115IDGSR enable under-voltage and over-voltage detection.
Features: ADS1115IDGSR
16-bit high-precision ADC: Supports 860 SPS (samples per second), providing high-resolution signal conversion.
Programmable gain amplifier (PGA): Input range from ±256 mV to ±6.144 V, suitable for signals of varying amplitudes.
Low-power design:
Continuous mode current of only 150 μA, automatically enters low-power mode after a single conversion.
Single-supply operation (2.0 V to 5.5 V), suitable for battery-powered devices.
Flexible input configuration:
4 single-ended inputs or 2 differential inputs (ADS1115).
Built-in multiplexer (MUX) supports multi-channel switching.
Built-in comparator: Can be used for under-voltage/over-voltage detection, supports threshold-triggered interrupts.
Parameters: ADS1115IDGSR
Resolution: 16-bit
Sampling rate: 860 SPS (programmable 8–860 SPS)
Input type: differential/single-ended
Number of input channels: 4 (single-ended) or 2 (differential)
PGA gain range: ±6.144 V to ±256 mV
Supply voltage: 2.0 V to 5.5 V (analogue & digital)
Interface: I²C (4 selectable addresses)
Power consumption: 150 μA (continuous mode), lower in single-shot mode
Package: VSSOP-10
Operating Temperature: -40°C to +125°C
Applications: ADS1115IDGSR
• Portable instruments
• Battery voltage and current monitoring
• Temperature measurement systems
• Consumer electronics
• Factory automation and process control
