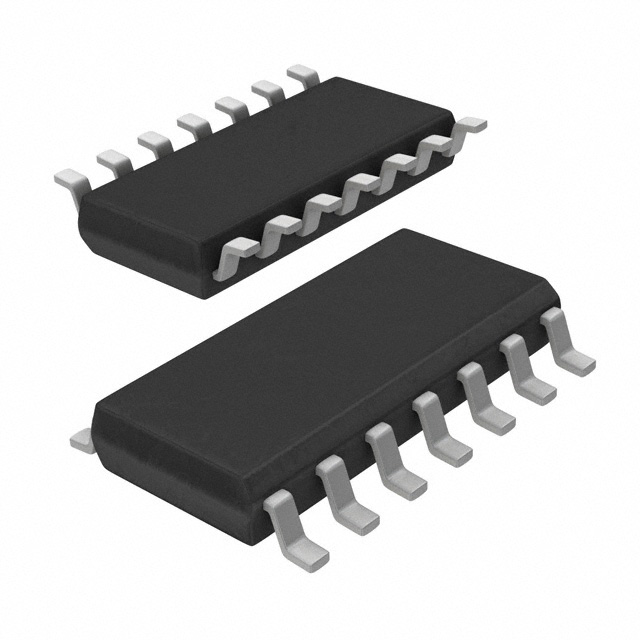

For picture reference, please see the specifications
< >

Commodity Model:MAX33049EASD

Trade Name:RS-422/RS-485 Interface IC

Brand:Maxim

Particular Year:25+

Package:SOIC-14

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX33049EASD
Package
SOIC-14
Describe
20Mbps Full-Duplex RS-485/RS-422 Transceivers with ±40kV ESD Protection

Product Description

The MAX33049EASD is a 40kV ESD-protected full-duplex RS-485/RS-422 transceiver with an operating voltage range of 3.0V to 5.5V. It is designed flexibly and supports robust communication up to 20Mbps.


The MAX33049EASD transceiver is optimized for robust communication in harsh industrial environments. It includes integrated hot-swappable protection and a true fault protection receiver, ensuring that the receiver outputs a logical high level when the input signal is short-circuited or open-circuited. According to the IEC 61000-4-2 standard, the driver output/receiver input can prevent faults up to 25V and withstand air gap discharge (ESD) up to 15kV and contact discharge (ESD) up to 10kV.


Target application

Programmable Logic Controller (PLC)

Factory automation equipment

Industrial control system


In addition, the main features of the MAX33049EASD transceiver include:

Integrated protection ensures robust communication

The ±25V fault protection range of the driver output/receiver input

High ESD protection

±40kV human body model (HBM) ESD

±15kV air gap ESD, in compliance with IEC 61000-4-2 standard

±10kV contact ESD, in compliance with IEC 61000-4-2 standard

Short-circuit protection output

A true fault-safe receiver

Hot plugging ability

Flexibility suitable for a variety of different applications

Power supply range: 3.0V to 5.5V

Up to 20Mbps data rate

It adopts 14-pin SOIC packaging

Enable up to 256 nodes on the bus

Operating temperature range: -40°C to 125°C


Associated Products

Model

Brand

Package

Quantity

Describe

MAX33047EASA

Altera

SOIC-8

2500

500kbps Full-Duplex RS-485/RS-422 Transceivers with ±40kV ESD Protection

ISO1410BDWR

TI

SOIC-16

12000

500Kbps, Half-Duplex, 5kVrms Isolated RS-485 and RS-422 Transceivers with EMC Protection

ADM487EARZ

ADI

SOIC-8

80000

5 V, 128 node, ±15 kV ESD protected, 250 kbps half-duplex transceiver

ISL3155EIBZ

Renesas

SOIC-8

2000

5V RS-485/RS-422 Transceiver With 16kV ESD Protection

ADM2682EBRIZ

ADI

SOIC-16

3500

16 Mbps, 5 kV rms signal and power isolated RS-485 transceiver

MAX1483ESA

Maxim

SOIC-8

20000

RS-422/RS-485 Interface IC 20 A, 1/8-Unit-Load, Slew-Rate-Limited, RS-485 Transceivers

ISL83082EIUZ

Renesas

MSOP-8

2000

5V Full Fail-Safe RS-485/RS-422 Transceivers
