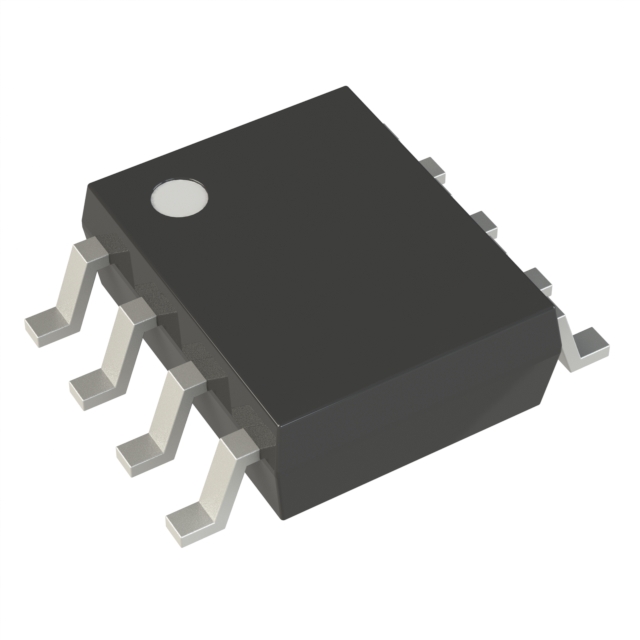

For picture reference, please see the specifications
< >

Commodity Model:MAX33047EASA

Trade Name:RS-422/RS-485 Interface IC

Brand:Altera

Particular Year:25+

Package:SOIC-8

Delivery Date:New and original

Stock: 2500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Altera
Model
MAX33047EASA
Package
SOIC-8
Describe
500kbps Full-Duplex RS-485/RS-422 Transceivers with ±40kV ESD Protection

Product Description

The MAX33047EASA is a 500kbps full-duplex RS-485/RS-422 transceiver for 3.3V or 5V supply with enhanced protection for harsh electrical environments. The device offers high fault protection and electrostatic discharge (ESD) protection, with ±25V fault protection for all drive outputs and receiving inputs, as well as ±40kV human model (HBM) ESD protection ‌. In addition, the MAX33047EASA also has ±15kV air gap discharge and ±10kV contact discharge protection to ensure stable operation in harsh industrial environment ‌.


Features

The main features of MAX33047EASA include:

Integrated protection ensures robust communication

The ±25V fault protection range of the driver output/receiver input

High ESD protection

±40kV human body model (HBM) ESD

±15kV air gap ESD, in compliance with IEC 61000-4-2 standard

±10kV contact ESD, in compliance with IEC 61000-4-2 standard

Short-circuit protection output

A true fault-safe receiver

Flexibility suitable for a variety of different applications

Power supply range: 3.0V to 5.5V

Data rate up to 500kbps

It adopts an 8-pin SOIC package

Enable up to 256 nodes on the bus

Operating temperature range: -40°C to 125°C

Application field

The MAX33047EASA is suitable for a wide range of industrial applications that require high-speed data transfer and enhanced protection, such as industrial automation, process control, data acquisition systems, etc. ‌. Its high reliability and strong anti-interference ability enable it to perform well in strict industrial environments.


Associated Products

Model

Brand

Package

Quantity

Describe

MAX33049EASD

Maxim

SOIC-14

3000

20Mbps Full-Duplex RS-485/RS-422 Transceivers with ±40kV ESD Protection

ISO1410BDWR

TI

SOIC-16

12000

500Kbps, Half-Duplex, 5kVrms Isolated RS-485 and RS-422 Transceivers with EMC Protection

ADM487EARZ

ADI

SOIC-8

80000

5 V, 128 node, ±15 kV ESD protected, 250 kbps half-duplex transceiver

ISL3155EIBZ

Renesas

SOIC-8

2000

5V RS-485/RS-422 Transceiver With 16kV ESD Protection

ADM2682EBRIZ

ADI

SOIC-16

3500

16 Mbps, 5 kV rms signal and power isolated RS-485 transceiver

MAX1483ESA

Maxim

SOIC-8

20000

RS-422/RS-485 Interface IC 20 A, 1/8-Unit-Load, Slew-Rate-Limited, RS-485 Transceivers

ISL83082EIUZ

Renesas

MSOP-8

2000

5V Full Fail-Safe RS-485/RS-422 Transceivers
