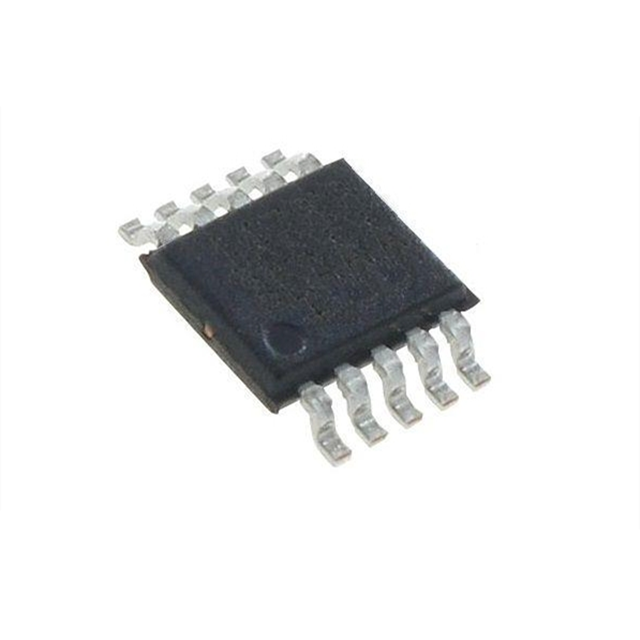

For picture reference, please see the specifications
< >

Commodity Model:MAX11101EUB

Trade Name:Analogue To Digital Converters - ADC

Brand:Maxim

Particular Year:25+

Package:UMAX-10

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Maxim
Model
MAX11101EUB
Package
UMAX-10
Describe
14-bit, +5V, 200ksps ADC with 10µA off mode

Product Description

The MAX11101EUB low-power, 14-bit analog-to-digital converter (ADC) adopts a successive approximation architecture and features an automatic shutdown function, a fast 1.1µs wake-up function, and a high-speed SPI/QSPI™/MICROWIRE® compatible interface. The MAX11101EUB is powered by a +5V single-channel analog power supply. The independent digital power supply pins allow the device to be directly connected to digital logic levels ranging from 2.7V to 5.25V.


At the maximum sampling rate of 200ksps, the typical current loss of MAX11101EUB is 2.45mA. At a sampling rate of 200ksps (maximum value), when VAVDD = VDVDD = 5V, the typical power consumption is 12.25mW. At A sampling rate of 10ksps, the AutoShutdown™ function can reduce the power supply current to 140µA. If the sampling rate is further reduced, the current can be lowered to below 10µA.


Application field

The MAX11101EUB demonstrates outstanding performance in multiple fields, especially with significant advantages in the following applications:

Accelerometer measurement

Data collection

Industrial I/O module

Industrial process control

Motor control

Portable products or battery-powered products

Thermocouple measurement

In addition, the MAX11101EUB also has the following main features:

14-bit resolution, 1 LSB DNL

+5V single power supply

Adjustable logic level (2.7V to 5.25V)

Input voltage range: 0 to VREF

Built-in sampling/hold, 4MHz input bandwidth

SPI/QSPI/MICROWIRE compatible serial interface

Small size, 10-pin µMAX and WLP package

Low power consumption

At 200ksps, the current loss is 2.45mA

At 10ksps, the current loss is 140µA

In the off mode, the current loss is 0.1µA


Associated Products

Model

Brand

Package

Quantity

Describe

AD7940BRJZ

ADI

SOT-23-6

3000

3 mW, 100 kSPS, 14-bit ADC, in a 6-pin SOT-23 package

ADS1248IPWR

TI

TSSOP-28

3000

A 24-bit 2kSPS 8-channel Δ-Σ ADC for precision sensor measurement

ADS5463IPFPR

TI

HTQFP-80

3000

12-bit 500MSPS analog-to-digital converter (ADC)

ADS1672IPAGR

TI

TQFP-64

3000

High-resolution 625kSPS 24-bit Σ-Δ analog-to-digital converter (ADC)

ADS4128IRGZR

TI

VQFN-48

3000

12-bit, 200MSPS analog-to-digital converter (ADC)

ADS42JB46IRGCR

TI

VQFN-64

3000

Dual-channel, 14-bit, 160MSPS analog-to-digital converter (ADC)

ADS42JB49IRGCR

TI

VQFN-64

3000

Dual-channel, 14-bit, 250MSPS analog-to-digital converter (ADC)

ADS42LB69IRGCR

TI

VQFN-64

3000

Dual-channel, 16-bit, 250MSPS analog-to-digital converter (ADC)

ADS42LB49IRGCR

TI

VQFN-64

3000

Dual-channel, 14-bit, 250MSPS analog-to-digital converter (ADC)

ADS61JB46IRHAR

TI

VQFN-40

3000

A 14-bit, 160MSPS analog-to-digital converter (ADC) with a JESD204A output interface

FAQ

  • 1.Is the inventory and price seen on the platform accurate?

    A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

  • 2.Are all our products genuine?

    A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

  • 3.Can you provide the qualification certificate of the original factory or agent?

    A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

  • 4.Can I make an inquiry through the company's website?

    A: You can inquire through the website, or by phone and email.

  • 5.When can I deliver the goods after placing an order? How long will it take to get there?

    A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

  • 6.Can the company issue an invoice?

    A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
