The ADS58H43IZCR is a high-linearity, four-channel, 14-bit, 250 MSPS analogue-to-digital converter (ADC). The four ADC channels are divided into two blocks, each containing two ADCs. Each block can be independently configured to operate in three distinct modes. One operating mode incorporates SNRBoost3G+ signal processing technology to deliver high signal-to-noise ratio (SNR) within a bandwidth of up to 90MHz whilst utilising only 11-bit resolution. Designed for low power consumption and high spurious-free dynamic range (SFDR), this ADC exhibits low noise performance and excellent SFDR across a wide input frequency range.

ADS58H43IZCR Product Features:

Four channels

Three distinct operating modes:

11-bit: 250 MSPS

11-bit SNRBoost3G+: 250 MSPS

14-bit: 250 MSPS (burst mode)

Maximum sampling data rate: 250 MSPS

Power dissipation:

11-bit mode: 365 mW per channel

SNRBoost3G+ bandwidth: 2 × 45 MHz or 90 MHz

Spectrum performance at 170MHz IF (typical):

Signal-to-noise ratio (SNR): 70.5dBFS at 90MHz bandwidth with SNRBoost3G+

Spurious-free dynamic range (SFDR): 85dBc

DDR low-voltage differential signalling (LVDS) digital output interface

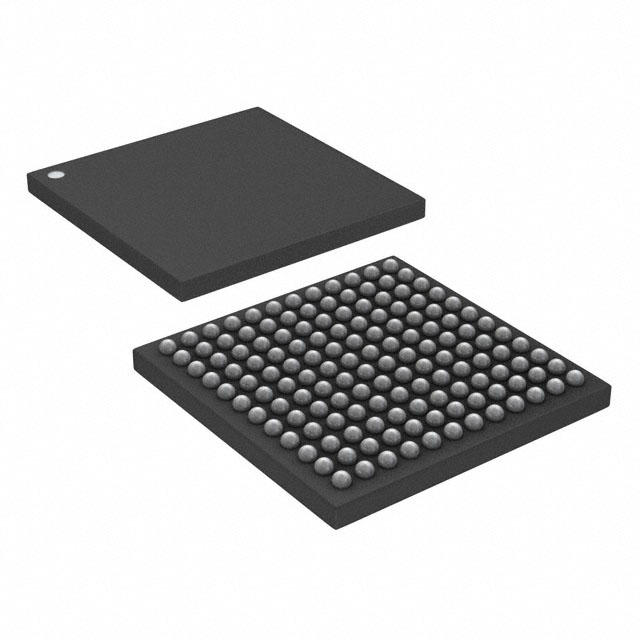

144-pin ball grid array (BGA) (10mm x 10mm)

ADS58H43IZCR Applications:

Multi-carrier GSM cellular infrastructure base stations

Multi-carrier multi-mode cellular infrastructure base stations

Active antenna arrays for wireless infrastructure

Communications test equipment
