The MAX11161EUB single-channel analog-to-digital converter is a 16-bit, 250ksps, SAR ADC. It features excellent AC and DC performance, supports a truly unipolar input range, and also has the characteristics of small size and built-in reference. This device can measure the input range of +5V (0 to 5V) and is powered by a single 5V power supply. The MAX11161EUB integrates a low-drift reference with an internal buffer, thereby saving the cost and space of an external reference.

The main features of MAX11161EUB include:

High DC/AC accuracy improves measurement quality

16-bit resolution, no code loss

250ksps throughput, no pipeline delay/delay

92.2dB SNR and -106.5dB ThD@10 KHZ

0.5 LSBRMS conversion noise

±0.8 LSB INL (typical value) and ±0.3 LSB DNL (typical value)

Highly integrated ADCs save costs and space

±7ppm/°C internal reference

Internal reference buffer

Flexible and low power supply, saving space and cost

+5V analog power supply and +2.3V to +5V digital power supply

31mW power consumption @ 250ksps

The current is 10µA in the off mode

Supports multiple industry standard series interfaces and small packages to reduce size

SPI/QSPI™/MICROWIRE®/DSP compatible

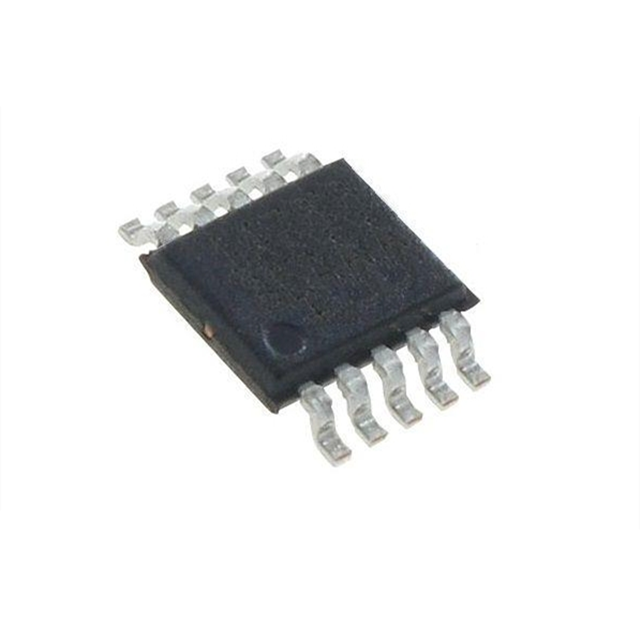

In addition, the MAX11161EUB adopts a 10-pin µMAX package and is suitable for application scenarios that require high-precision and high-speed conversion. This product is widely used in various electronic devices, providing stable performance and reliable conversion accuracy.
