The MAX11160EUB is a 16-bit, 500ksps, (SAR) analog-to-digital converter ADC, featuring outstanding AC and DC performance, supporting a truly unipolar input range, and featuring a small size and built-in reference. The MAX11160EUB can measure an input range of +5V (0 to 5V) and is powered by a single 5V power supply. This ADC integrates a low-drift reference with an internal buffer, thereby saving the cost and space of an external reference.

In addition, the MAX11160EUB is compatible with serial communication via SPI and operates at logic levels of 2.3V, 3V, 3.3V or 5V. The serial interface can connect multiple ADCs in Daisy chain form for multi-channel applications; The device offers a "busy" indication option to simplify system synchronization and timing.

Application field

Automatic testing equipment

Data acquisition system

Industrial process control

Medical instrument

The main features of MAX11160EUB are as follows:

High DC/AC accuracy improves measurement quality

16-bit resolution, no code loss

500ksps throughput, no pipeline delay/delay

91.7dB SNR and -103dB ThD@10 KHZ

0.5 LSBRMS conversion noise

±0.5 LSB DNL(typical value) and ±1.3 LSB INL (typical value)

Highly integrated ADCs save costs and space

±7ppm/°C internal reference

Internal reference buffer

Flexible and low power supply, saving space and cost

+5V analog power supply and +2.3V to +5V digital power supply

35.4mW power consumption @ 500ksps

The current is 10µA in the off mode

Supports multiple industry standard series interfaces and small packages to reduce size

SPI/QSPI™/MICROWIRE®/DSP compatible

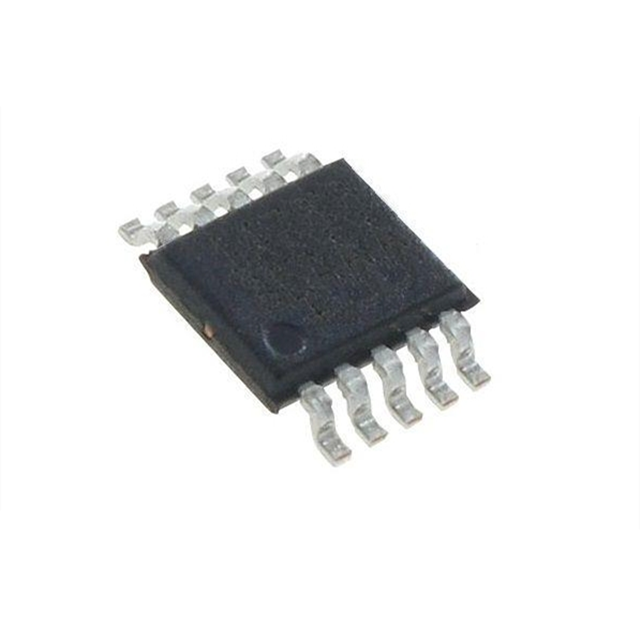

3mm x 5mm, micro, 10-pin µMAX package
