The MAX11900ETP is a 16-bit, 1Msps, single-channel, fully differential SAR ADC with an internal reference buffer. The MAX11900ETP offers outstanding static and dynamic performance, with power consumption proportional to throughput rate, and it has the best indicators among similar products. The device supports ±VREF unipolar and differential input range.

This ADC has an SNR of up to 95.6dB and a THD of -115dB, ensuring a 16-bit code-free resolution and 0.5 LSB INL (maximum value).

Application scenarios

The MAX11900ETP is suitable for various applications that require high-precision analog-to-digital conversion, including:

Automatic testing equipment

Battery-powered equipment

Data acquisition system

Medical instrument

Process Control and Industrial Automation

Telecommunications

Testing and Measurement

Furthermore, the key parameters of MAX11900ETP include:

Number of digits: 16

Sampling rate (per second) : 1M

Input number: 1

Input type: Differential

Data interface: SPI, DSP

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 1.7V to 1.9V

Voltage - Power supply, digital: 1.7V to 1.9V

Feature: -

Operating temperature: -40°C to 85°C

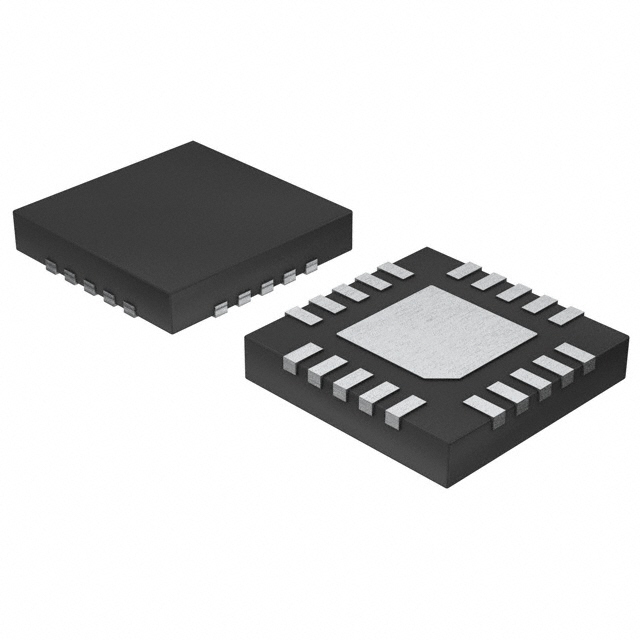

Package/Shell: 20-TQFN

Installation type: Surface mount type
