The MAX11214EUG is a 24-bit Δ-Σ single-channel analog-to-digital converter with an excellent 140dB SNR and an ultra-low power consumption of 5mW. A sampling rate of up to 32ksps supports high-precision DC and AC measurements. The sampling rate of MAX11214EUG supports high-precision AC/DC measurements. It can guarantee a maximum integral nonlinearity of 4ppm and -122dB THD. In addition, the MAX11214EUG communicates via a SPI-compatible serial interface and is packaged in a small-sized 24-pin TSSOP.

Key parameters

Digit number: 24

Sampling rate (per second) : 32k

Input number: 1

Input type: Differential

Data interface: SPI

Configuration: PGA-ADC

Ratio -S /H:ADC: -

Number of A/D converters: 1

Architecture: Triangular integral

Reference type: External

Voltage - Power supply, simulation: ±1.8V, 2.7V to 3.6V

Voltage - Power supply, digital: 2V to 3.6V

Feature: PGA

Operating temperature: -40°C to 85°C

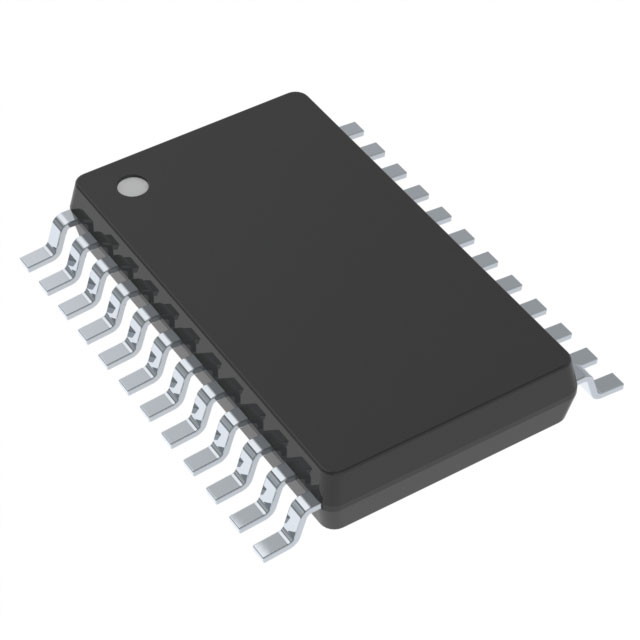

Package/Shell: 24-TSSOP

Installation type: Surface mount type

Application field

The MAX11214EUG is suitable for a variety of application fields, including:

ATE

High-precision portable sensor

Medical device

Scientific instruments

Seismic data acquisition
