The LTC6409IUDB is a very high-speed and low-distortion differential amplifier. The input common-mode range of this device includes the ground potential. Therefore, DC coupling, level shifting and conversion can be performed on an input signal referenced to the ground to perform differential driving on an ADC. Its gain and feedback resistors are external, thus enabling precise gain and frequency response for each application.

Technical Specification

The key specifications of LTC6409IUDB are as follows:

Number of channels: 1 Channel

GBP- Gain Bandwidth product: 10 GHz

SR - Conversion rate: 3.3 kV/us

Voltage gain dB: 65 dB

CMRR - Common Mode rejection ratio: 90 dB

The output current of each channel: 95 mA

Ib - Input bias: 62 uA

Vos - Input bias voltage: 300 uV

Power supply voltage - Maximum: 5.25V

Power supply voltage - minimum: 2.7V

Working power supply current: 52 mA

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Installation style: SMD/SMT

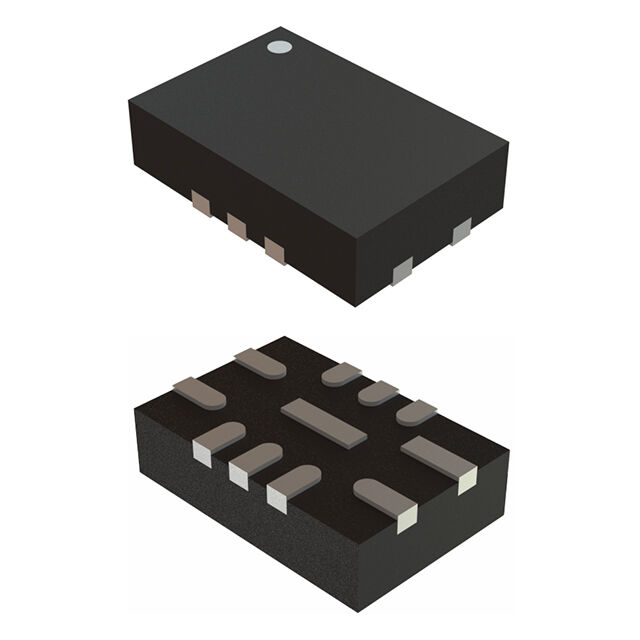

Packaging/Box: QFN-10

Typical application scenarios

The LTC6409IUDB is highly suitable for a variety of application scenarios, including:

Differential pipeline-type ADC driver

High-speed data acquisition card

Automated testing equipment

Time-domain reflectometer

Communication receiver
