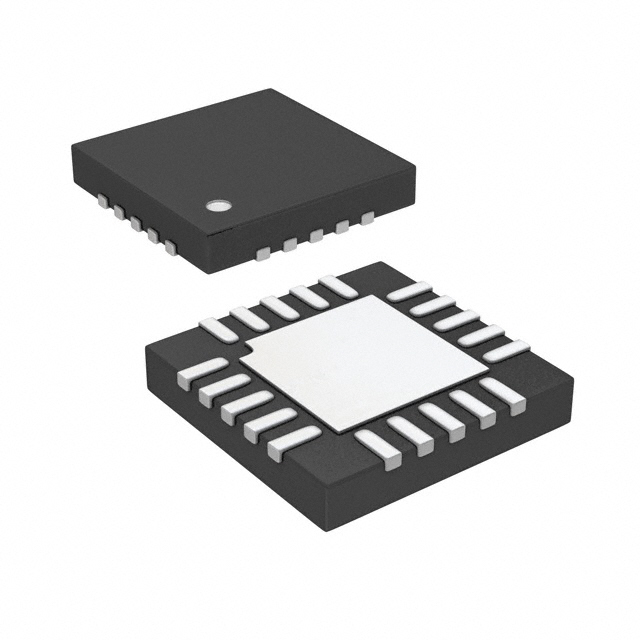

For picture reference, please see the specifications
< >

Commodity Model:LTC9105ATP

Trade Name:Power over Ethernet (PoE) controller

Brand:ADI

Particular Year:25+

Package:QFN-20

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LTC9105ATP
Package
QFN-20
Describe
IEEE 802.3bt PD controller with telemetry and power priority

Product Description

The LTC9105ATP is an IEEE 802.3af/at/bt (" PoE 2 ") Power over Ethernet (PoE) Receiving Device (PD) controller with input current, voltage and power telemetry functions. The LTC9105ATP includes an I2C interface for reading telemetry data, the power allocated by the power supply equipment (PSE), and the auxiliary input status, as well as writing the power input priority. The LTC9105ATP also features a configurable downstream power-on disabling function. When the power allocated by the PSE is lower than the power requested by the PD, it will issue a power shortage indicator.


Main characteristics

IEEE 802.3bt Power Receiving Device (PD) Controller

400kHz I2C interface

Continuous voltage, current and power telemetry

Dedicated 14-bit Δ-Sigma current and voltage ADC

Automatic Power Signature Preservation (MPS)

Supports up to 90W PD and extended power

5-event classification sensing with PSE allocated power callback

Seamless switching between dual PD or PD/AUX inputs

Outstanding surge robustness (100V absolute maximum value)

Wide junction temperature range (-40 ° C to 125 ° C)

External hot-swappable N-channel MOSFETs can achieve the lowest power consumption and the highest system efficiency

50mΩ current detection resistor

Auxiliary input detection with standby mode

20-pin 5mm x 5mm QFN package


Application field

The LTC9105ATP is suitable for a variety of application fields, including:

IEEE 802.3bt PD with power telemetry function

Wireless access point/Picocellular

Internet Protocol (IP) security camera

Power over Ethernet (PoE) lighting


Associated Products

Model

Brand

Package

Quantity

Describe

LTC4270BIUK

ADI

QFN-52

10000

12-Port PoE / PoE+ / LTPoE++ PSE Controller

LTC4292IUJ

ADI

QFN-40

3000

4-port PoE++ PSE analog controller

LTC4291IUF-1

ADI

QFN-24

2000

4-port IEEE 802.3bt PoE PSE controller

LTC4279IUFD

ADI

QFN-20

2000

Single-port PoE/PoE+ / LTPoE++ PSE controller

LT4293HMS

ADI

MSOP-10

2500

LTPoE++/IEEE 802.3bt PD interface controller

LT4276BIUFD

ADI

QFN-28

2000

LTPoE++/PoE+/PoE PD forward/flyback controller

LT4276AHUFD

ADI

QFN-28

2000

LTPoE++/PoE+/PoE PD forward/flyback controller

MAX5995BETE

Maxim

TQFN-16

3000

IEEE 802.3BT-compatible, electrical device interface controller

LT4275AHDD#TRPBF

ADI

DFN-10

50000

Power over Ethernet Controller (PoE) 1 channel 802.3at (PoE+), 802.3af (PoE), LTPoE++ 10-DFN (3x3)

TPS23861PWR

TI

TSSOP-28

80000

Power over Ethernet Controller (PoE) 4-channel 802.3at (PoE+), 802.3af (PoE) 28-TSSOP
