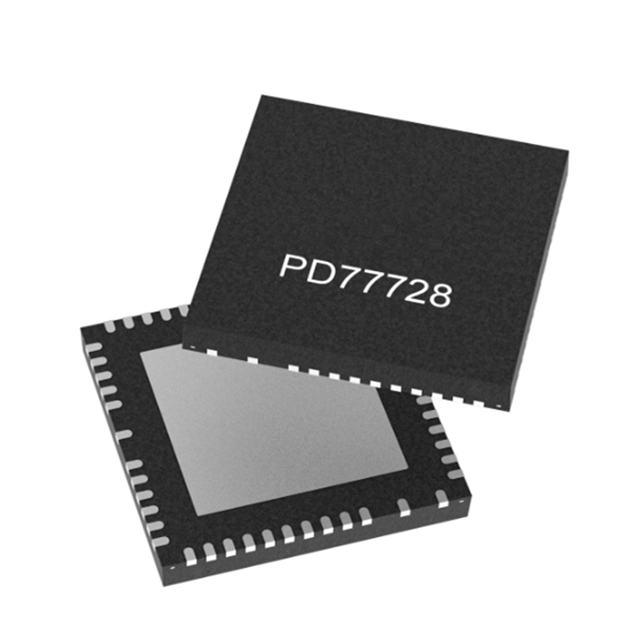

The PD77728ILQ-0111 8-port POE PSE controller/manager is part of Microchip's sevengeneration IEEE® 802.3bt compatible Power over Ethernet (POE) power supply equipment (PSE) series. It has the following core parameters:

Type: Controller (PSE

Number of channels: 8

Power - Maximum: 90 W

Internal switch: Yes

Auxiliary effect: None

Standards: 802.3at (PoE+), 802.3af (PoE), 802.3bt

Voltage - Power supply: 3V - 3.6V, 44V - 57V

Current - Power supply: 1.5mA

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Package/Housing: 56-QFN (8x8)

The PD77728ILQ-0111 is a fully integrated 8-port PoE controller and PoE manager that integrates field-effect transistor (FET) switches and current detection resistors. Up to 12 devices can be cascaded to provide 48 4-pair ports. According to IEEE regulations, the device supports PoE power receiving device (PD) detection, classification, power-on and protection, as well as traditional/pre-standard PD detection. PD77728ILQ-0111 provides real-time protection against overload, underload, overvoltage, overheating and short circuit, and can operate in independent mode. This device adopts a 56-pin 8mm × 8mm QFN package.

Application field

Switches and routers for enterprises, small and medium-sized enterprises, SOHO and commercial markets

Switches for the lighting market

PoE power supply
