Trade Name:Voltage Reference
Brand:ADI
Particular Year:25+
Package:MSOP-8
Delivery Date:New and original
Stock: 2500pcs

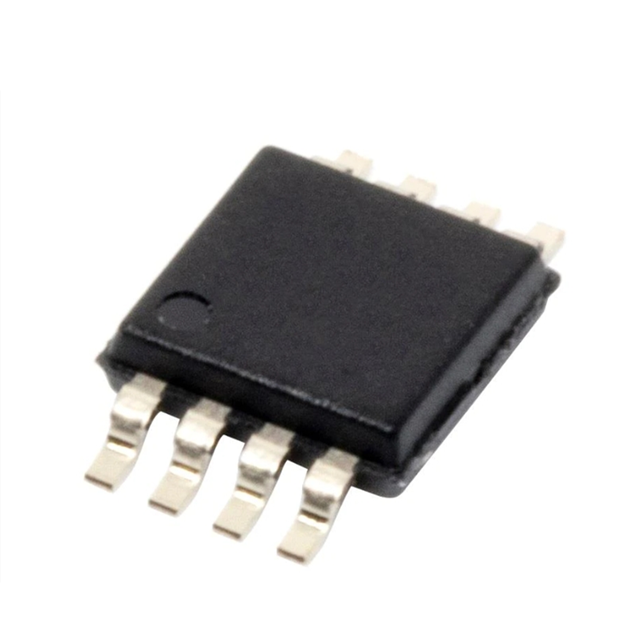

The LT6657AHMS8-1.25 is a precision voltage reference device with extremely low drift and low noise characteristics . It combines robust working characteristics, extremely low temperature drift and low noise, and is particularly suitable for application scenarios that require high-precision voltage reference. The LT6657AHMS8-1.25 is in an 8-pin MSOP package, operates within -40°C to 125°C, and provides an output voltage of 1.25V at .
Main characteristics
Low drift: 1.5ppm/°C (maximum value)
Low noise
0.5ppmP-P (0.1Hz to 10Hz)
0.8ppmRMS (10Hz to 1kHz)
Wide power supply range up to 40V
Supply and absorption of 10mA (minimum value)
Voltage regulation rate: 0.2ppm/V
Load regulation rate: 2μV/mA
Reverse power supply protection
Reverse output protection
Low-power shutdown mode: <4μA (maximum value)
Minimum power supply of 1.5V (for the 1.25V option)
Thermal protection
It can work in parallel mode
It can be configured as a negative benchmark
Available output voltage options: 1.25V, 2.5V, 3V, 4.096V, 5V
MSOP-8 packaging
Application scenarios
The LT6657AHMS8-1.25 is suitable for a variety of high-precision application scenarios, including:
High-temperature industry
High-resolution data acquisition system
Instruments and process control
Automobile control and monitoring
Medical equipment
Parallel reference and negative voltage reference
