Trade Name:Voltage Reference
Brand:ADI
Particular Year:25+
Package:MSOP-8
Delivery Date:New and original
Stock: 2500pcs

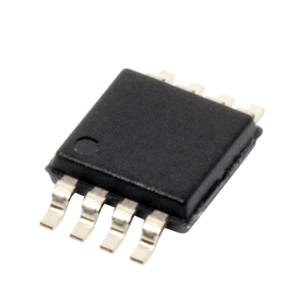

The ADR3530WARMZ device is a low-power, precise, automotive application-certified 3.0V reference voltage source, featuring a maximum temperature coefficient of 8ppm/°C, low operating current and low output noise, and is available in an 8-pin MSOP package. To achieve high precision, during the final assembly stage, the ADR3530WARMZ utilized Analog Devices' patented DigiTrim® technology to digitally adjust the output voltage and temperature coefficient.
Application field
The ADR3530WARMZ is suitable for a variety of electronic devices that require high precision and low power consumption, including but not limited to:
Automobile battery monitor
Portable instruments and meters
Process transmitter
Remote sensor
Medical instruments
Key parameters
Model: ADR3530WARMZ
Reference type: Series
Output type: Fixed
Voltage - Output (minimum/Fixed) : 3V
Current - Output: 10 mA
Tolerance: ±0.1%
Temperature coefficient: 8ppm/°C
Noise - 0.1Hz to 10Hz: 22µVp-p
Noise - 10Hz to 10Hz: 45µVrms
Voltage - Input: 3.2V to 5.5V
Current - Power supply: 100µA
Operating temperature: -40°C to 125°C (TA)
Grade: Automotive grade
Installation type: Surface mount type
Packaging/Shell: 8-MSOP
