Product Classification

AI Processor Chip

Resistor network

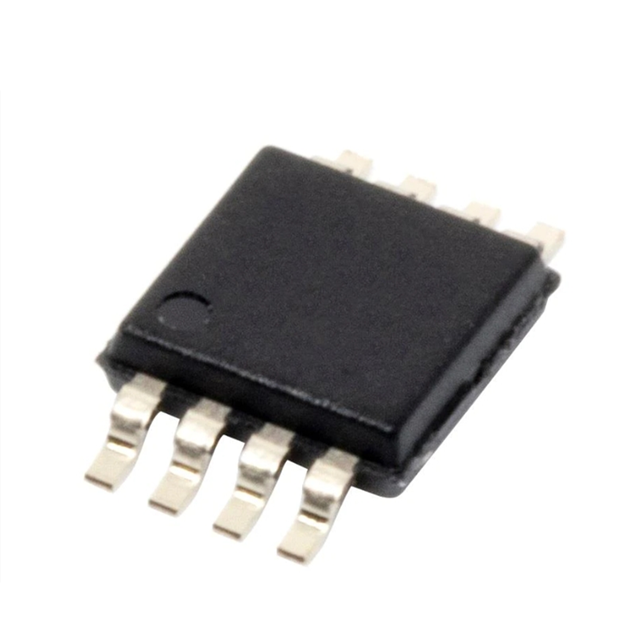

For picture reference, please see the specifications
< >

Commodity Model:LT6657BHMS8-5

Trade Name:Voltage Reference

Brand:ADI

Particular Year:25+

Package:MSOP-8

Delivery Date:New and original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT6657BHMS8-5
Package
MSOP-8
Describe
3ppm/°C drift, low noise, buffering reference

Product Description

The LT6657BHMS8-5 is a high-precision voltage reference that combines robust working characteristics with extremely low drift and low noise. By leveraging advanced curvature compensation, this bandgap reference achieves a drift of 3ppm/°C and a predictable temperature operation mode, as well as an initial voltage accuracy of 0.1%. In addition, it also provides 0.5ppmP-P noise and very low temperature cycling hysteresis.


The main features of LT6657BHMS8-5 are as follows:

Low drift: 3ppm/°C (maximum)

Low noise

0.5ppmP-P (0.1Hz to 10Hz)

0.8ppmRMS (10Hz to 1kHz)

Wide power supply range up to 40V

Supply and absorption of 10mA (minimum value)

Voltage regulation rate: 0.2ppm/V

Load regulation rate: 2μV/mA

Reverse power supply protection

Reverse output protection

Low-power shutdown mode: <4μA (maximum value)

Minimum power supply of 1.5V (for the 1.25V option)

Thermal protection

It can work in parallel mode

It can be configured as a negative benchmark

Available output voltage options: 1.25V, 2.5V, 3V, 4.096V, 5V

MSOP-8 packaging


Application scenarios

The LT6657BHMS8-5 is suitable for a wide range of applications that require a high precision voltage reference, especially in automotive electronics. Its robust working characteristics and high-temperature resistance make it an ideal choice ‌. In addition, the chip is suitable for precision measurement and control systems that require low noise and low drift ‌.


Associated Products

Model

Brand

Package

Quantity

Describe

ADR3550WARMZ

ADI

MSOP-8

3000

An 8ppm/°C, 5V reference voltage source certified for automotive applications

ADR3540WARMZ

ADI

MSOP-8

3000

A reference voltage source of 8ppm/°C and 4.096V certified for automotive applications

ADR3530WARMZ

ADI

MSOP-8

2500

An 8ppm/°C, 3.0V reference voltage source certified for automotive applications

ADR3525WARMZ

ADI

MSOP-8

3000

An 8ppm/°C, 2.5V reference voltage source certified for automotive applications

LT6654BIS6-3.3

ADI

SOT-23-6

3000

20ppm/°C precision, wide power supply range, high output drive, low noise reference

LT6657BHMS8-3

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657BHMS8-2.5

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657BHMS8-1.25

ADI

MSOP-8

3000

3ppm/°C drift, low noise, buffering reference

LT6657AHMS8-5

ADI

MSOP-8

3000

1.5ppm/°C drift, low noise, buffering reference

LT6657AHMS8-3

ADI

MSOP-8

3000

1.5ppm/°C drift, low noise, buffering reference
