Service Telephone:86-755-83294757
Trade Name:Voltage Reference
Brand:ADI
Particular Year:25+

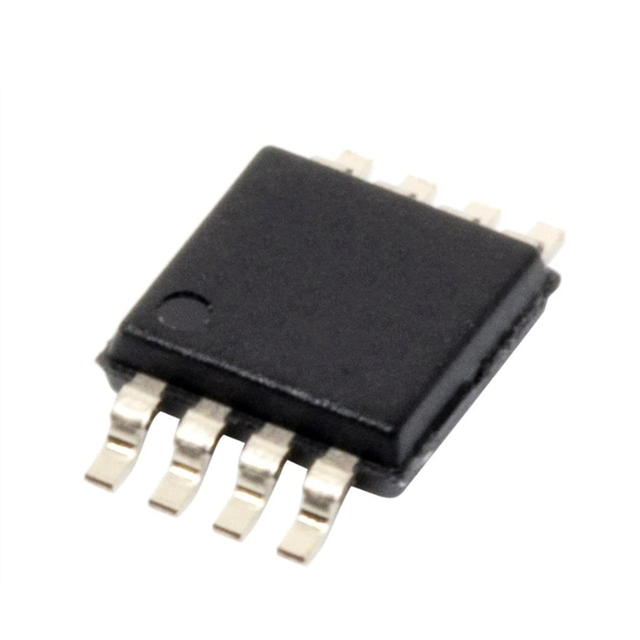

Package:MSOP-8
Delivery Date:New and original
Stock: 3000pcs
The LT6657BHMS8-2.5 is a high-precision voltage reference that combines robust working characteristics with extremely low drift and low noise. By leveraging advanced curvature compensation, the LT6657BHMS8-2.5 device achieves a drift of 3ppm/°C, a predictable temperature operation mode, and an initial voltage accuracy of 0.1%.
Technical Specification
Model: LT6657BHMS8-2.5
Reference type: Series
Output type: Fixed
Voltage - Output (minimum/Fixed) : 2.5V
Current - Output: 10 mA
Tolerance: ±0.1%
Temperature coefficient: 3ppm/°C
Noise - 0.1Hz to 10Hz: 0.5ppmp-p
Noise - 10Hz to 10Hz: 0.8 PPM ms
Voltage - Input: 3V to 40V
Current - Power supply: 1.2mA
Operating temperature: -40°C to 125°C (TJ)
Installation type: Surface mount type
Packaging/Shell: 8-MSOP
Application scenarios
The LT6657BHMS8-2.5 is suitable for various application scenarios that require high-precision voltage references, including but not limited to:
High-temperature industry
High-resolution data acquisition system
Instruments and process control
Automobile control and monitoring
Medical equipment
Parallel reference and negative voltage reference
Model
Brand
Package
Quantity
Describe
ADI
SOT-23-3
26500
2.5V ultra-low power consumption, precision series mode reference voltage source
ADI
TSOT-23-6
22300
Precision, wide power supply range, high output drive, low noise reference
ADI
MSOP-8
3000
An 8ppm/°C, 5V reference voltage source certified for automotive applications
ADI
MSOP-8
3000
A reference voltage source of 8ppm/°C and 4.096V certified for automotive applications
ADI
MSOP-8
2500
An 8ppm/°C, 3.0V reference voltage source certified for automotive applications
ADI
MSOP-8
3000
An 8ppm/°C, 2.5V reference voltage source certified for automotive applications
ADI
SOT-23-6
3000
20ppm/°C precision, wide power supply range, high output drive, low noise reference
