sales@hkmjd.com
Service Telephone:86-755-83294757
Trade Name:Voltage Reference
Brand:ADI
Particular Year:25+
Package:MSOP-8
Delivery Date:New and original
Stock: 3000pcs

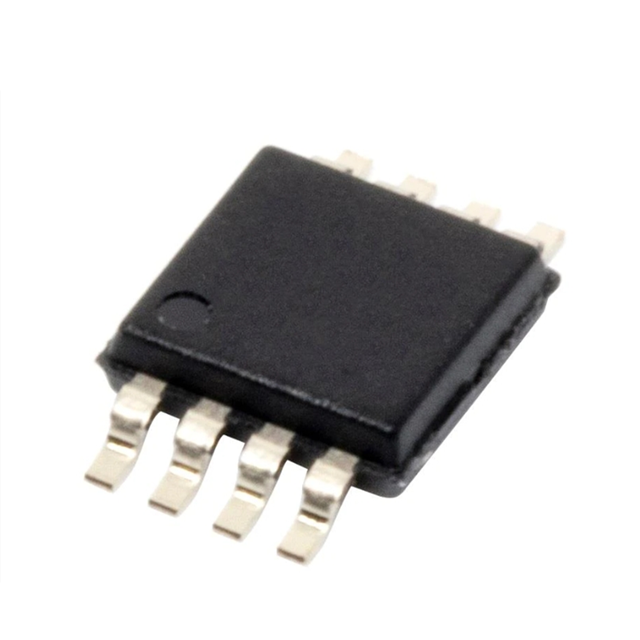

The ADR3550WARMZ is a low-power, precise 5.0V reference voltage source certified for automotive applications, featuring a temperature coefficient of 8 ppm/°C, low operating current and low output noise, and is available in an 8-pin MSOP package. To achieve high precision, during the final assembly stage, Analog Devices' patented DigiTrim® technology was utilized to digitally adjust the output voltage and temperature coefficient.
Main characteristics
Maximum temperature coefficient (TC) : 8 ppm/ºC
Initial output voltage error: ±0.1% (maximum value)
Operating temperature range: -40 °C to +125°C
Output current: +10 mA source current / -3 mA suction current
Low static current: 100 µA (maximum value)
Long-term drift: 30 ppm (typical value after the initial 1000 hours)
Low pressure difference: 250 mV (2 mA)
Output noise (0.1 Hz to 10 Hz) : 35 μVp-p (5.0 V, typical value)
Pass the automotive application certification
Application field
The ADR3550WARMZ is suitable for various applications that require high-precision voltage references, especially in automotive electronic systems. Its low power consumption, high precision and temperature stability make it perform well in situations where a stable voltage source is required. In addition, it is EC-Q100 certified, making it particularly suitable for automotive electronics and other reliability demanding applications .
