Trade Name:Voltage Reference
Brand:ADI
Particular Year:25+

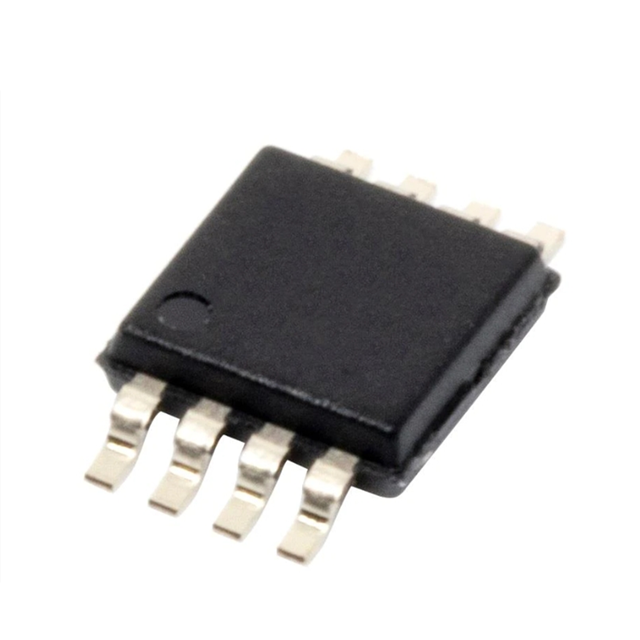

Package:MSOP-8
Delivery Date:New and original
Stock: 3000pcs
The ADR3525WARMZ is a low-cost, low-power, high-precision CMOS reference voltage source, featuring a maximum temperature coefficient of 8 ppm/°C, low operating current and low output noise. It is available in an 8-pin MSOP package. To achieve high precision, during the final assembly stage, Analog Devices' patented DigiTrim® technology was utilized to digitally adjust the output voltage and temperature coefficient.
Low output voltage hysteresis and low long-term output voltage drift improve the accuracy of the system during its service life.
These CMOS reference voltage sources offer five output voltages, and the rated temperature range of the devices is all from -40 °C to +125°C for automotive applications.
Basic parameters
Model: ADR3525WARMZ
Reference type: Series
Output type: Fixed
Voltage - Output (minimum/Fixed) : 2.5V
Current - Output: 10 mA
Tolerance: ±0.1%
Temperature coefficient: 8ppm/°C
Noise - 0.1Hz to 10Hz: 18µVp-p
Noise - 10Hz to 10Hz: 42µVrms
Voltage - Input: 2.7V to 5.5V
Current - Power supply: 100µA
Operating temperature: -40°C to 125°C (TA)
Grade: Automotive grade
Installation type: Surface mount type
Packaging/Shell: 8-MSOP
Application scenarios
The ADR3525WARMZ-R7 is suitable for a variety of application scenarios, including:
Automobile battery monitor
Portable instruments and meters
Process transmitter
Remote sensor
Medical instruments
