ADRF5010BCCZN is a non-reflective single-pole single-throw (SPST) RF switch made by silicon process ‌. Its operating frequency range is from 0.1 GHz to 55 GHz, featuring low insertion loss and high isolation. The insertion loss of ADRF5010BCCZN is 1.0 dB at 20 GHz, 1.5 dB at 40 GHz, and 2.0 dB at 55 GHz. The isolation is 30 dB at 50 GHz and 28 dB at 55 GHz. The device also has high power handling capabilities, with peak power of up to 36 dBm in straight-through path, 33 dBm in pulse power and 30 dBm in continuous wave power ‌.

Technical parameters

Operating frequency range ‌ : 0.1 GHz to 55 GHz

Insertion loss ‌ : 1.0 dB at 20 GHz, 1.5 dB at 40 GHz, 2.0 dB at 55 GHz

Isolation ‌ : 30 dB at 50 GHz, 28 dB at 55 GHz

Rf input power handling capacity ‌ : straight-through path peak 36 dBm, pulse 33 dBm, continuous wave 30 dBm; Termination path peak 33 dBm, pulse 33 dBm, continuous wave 30 dBm‌

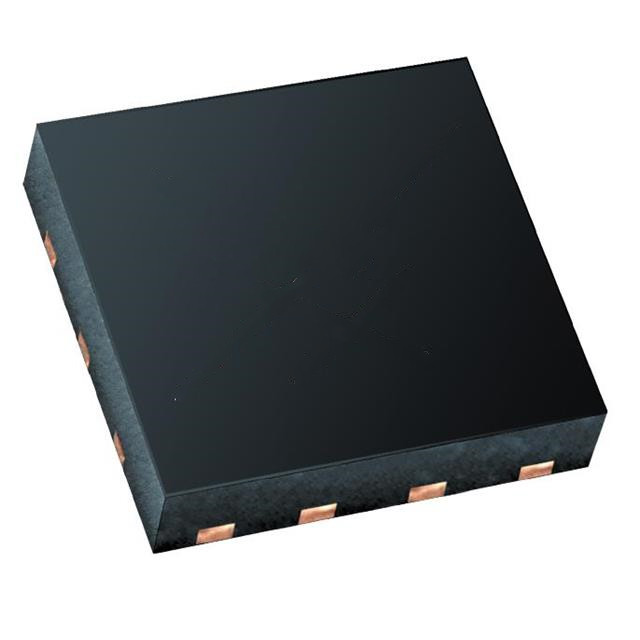

In addition, the ADRF5010BCCZN is available in a 14-pin 2.25mm x 2.25mm LGA package and operates within a temperature range of -40°C to +105°C.

Application field

ADRF5010BCCZN is applicable to a variety of fields, including:

Tests and instruments ‌

Cellular infrastructure ‌ (such as 5G millimeter wave)

Military radio, radar, electronic countermeasures ‌

Microwave radio and very small aperture terminal ‌

Industrial scanner ‌‌
