Trade Name:RF switch
Brand:ADI
Particular Year:25+
Package:LGA-20
Delivery Date:New and original
Stock: 2500pcs

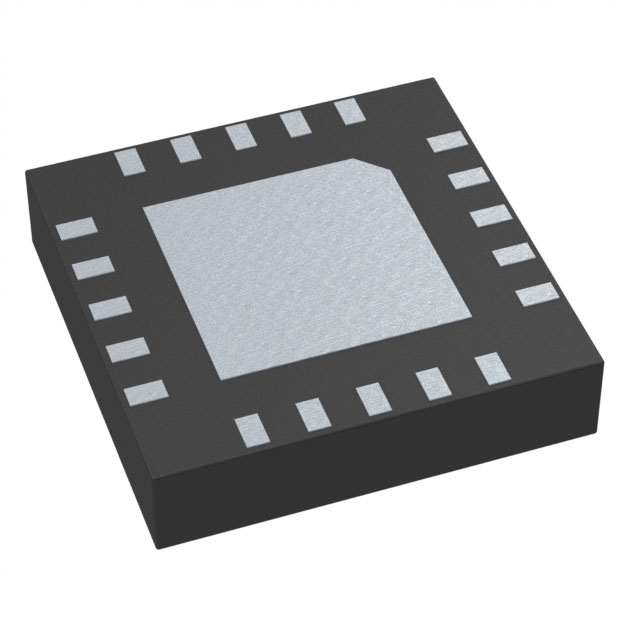

The ADRF5030BCCZN is a non-reflective single-pole double-throw (SPDT) switch, manufactured using the silicon-on-insulator (SOI) process. The operating frequency range of ADRF5030BCCZN is from 100 MHz to 20 GHz, with insertion loss less than 1.2 dB and isolation higher than 45 dB. In addition, the ADRF5030BCCZN adopts complementary metal-oxide-semiconductor (CMOS) and low-voltage transistor-to-transistor logic (LVTTL) compatible control.
Main characteristics
Broadband frequency range: 100 MHz to 20 GHz
Non-reflective 50 Ω design
Low insertion loss
The typical value is 0.7 dB between 0.1 GHz and 6 GHz.
It is 0.9 dB (typical value) between 6 GHz and 12 GHz.
1.2 dB (typical value), up to 20 GHz
High isolation degree
Between 100 MHz and 6 GHz, it is 55 dB (typical value)
Between 6 GHz and 12 GHz, it is 50 dB (typical value)
At up to 20 GHz, it is 45 dB (typical value)
High input linearity
P0.1dB: >36 dBm (typical value)
IP3: >60 dBm (typical value)
High RF power handling capability
Direct path: Peak of 36 dBm/average of 33 dBm
Termination path: Peak of 36 dBm/average of 33 dBm
Hot switching: Peak value of 36 dBm/average value of 33 dBm
Compatible with CMOS/LVTTL
No low-frequency spurious behavior; Non-negative voltage generator
RF switching time: 70 ns
RF establishment time (0.1 dB) : 95 ns
Single power supply working capacity (VDD = 3.3V, VSS = 0V)
20 pins, 3mm × 3mm, LGA package
The pins are compatible with ADRF5022 and ADRF5026
ADRF5030BCCZN is suitable for a variety of application scenarios, including:
Testing instrument
Military radio, radar and electronic countermeasures (ECM)
Microwave radio and very small Aperture Terminal (VSAT)
Model
Brand
Package
Quantity
Describe
Renesas
20-VFQFPN
2500
75ohm SP2T Absorptive RF Switch 5MHz to 3000MHz with RFC Termination
