The ADRF5031BCCZN is a non-reflective SPDT switch manufactured using the silicon-on-insulator (SOI) process. It operates within a frequency range of 9 kHz to 20 GHz, with insertion loss below 1.05 dB and isolation above 45 dB. This device operates with a dual power supply voltage of ± 3.3V. In addition, the ADRF5031BCCZN adopts complementary metal-oxide-semiconductor (CMOS) and low-voltage transistor-to-transistor logic (LVTTL) compatible control.

The features of ADRF5031BCCZN include:

Bandwidth frequency range: 9 kHz to 20 GHz

Non-reflective 50 Ω design

Low insertion loss

The typical value within the range of 9 kHz to 6 GHz is 0.6 dB

The typical value between 6 GHz and 12 GHz is 0.8 dB

1 dB typical value, up to 20 GHz

High isolation

The typical value within the range of 9 kHz to 6 GHz is 55 dB

The typical value within the range of 6 GHz to 12 GHz is 50 dB

Then until the range of 20 GHz, the typical value is 45 dB

High input linearity

P0.1dB: 35 dBm (typical value)

IP3:62 dBm (typical value)

High RF power handling capability

Direct path: Peak 35 dBm, average 33 dBm

Termination path: Peak 32 dBm, average 30 dBm

Hot Switching (RFC) : Peak 35 dBm, average 33 dBm

Hot switching (RFx) : Peak 32 dBm, average 30 dBm

Compatible with CMOS/LVTTL

No low-frequency spurious behavior; Non-negative voltage generator

RF switching time: 5.0 microseconds

RF establishment time (0.1 dB) : 5.3 microseconds

Single power supply capacity (VDD = 3.3V, VSS = 0V)

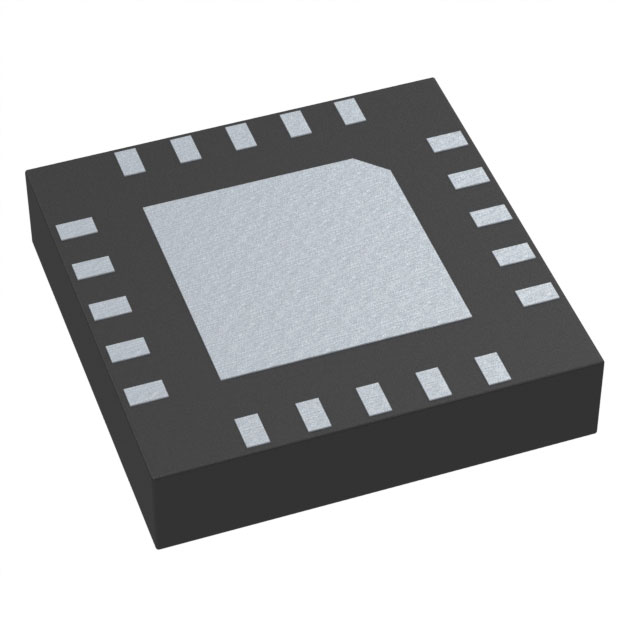

20 terminals, 3 mm x 3 mm LGA package

The pins are compatible with ADRF5023 and ADRF5027

Application field

ADRF5031BCCZN is widely used in the following fields:

Test instruments and meters

Military radio, radar and electronic countermeasures (ECM)

Microwave radio frequency and Very small Aperture Terminal (VSAT)
