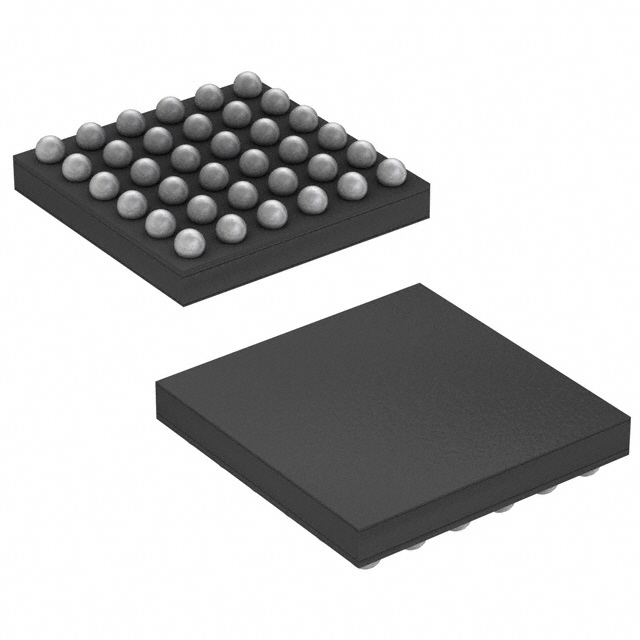

The MAX11259AWX is a 6-channel, 24-bit, Δ-Σ ADC that achieves excellent performance while maintaining extremely low power consumption. A sampling rate of up to 16ksps supports high-precision DC measurement. The MAX11259AWX communicates via I2C serial port and adopts a small-sized (3mm x 3mm) WLP package. It has the following main characteristics:

High resolution, suitable for wide dynamic range industrial applications

133dB SNR @ 50sps

124dB SNR @ 1000sps

It has a long battery life and is suitable for portable applications

2.2mA working current

1µA sleep current

Single power supply or dual power supply, with flexible input voltage range

2.7V to 3.6V (single power supply) or ±1.8V (dual power supply

Support system integration

Low-noise, 6.2nV/√Hz PGA, the gain can be set to 1, 2, 4, 8, 16, 32, 64, 128

6-channel, fully differential input

Calibration can be carried out as needed or the gain and offset calibration of the system can be performed

User-programmable offset and gain registers

Reliable performance and small package

Operating temperature range: -40°C to +125°C

WLP package, 3mm x 3mm

Application scenarios

The MAX11259AWX is suitable for a wide range of application scenarios, including battery-powered instruments, pressure sensors, wearable electronic products, weighing devices, etc. Its low power consumption makes it particularly suitable for battery-powered devices ‌.
