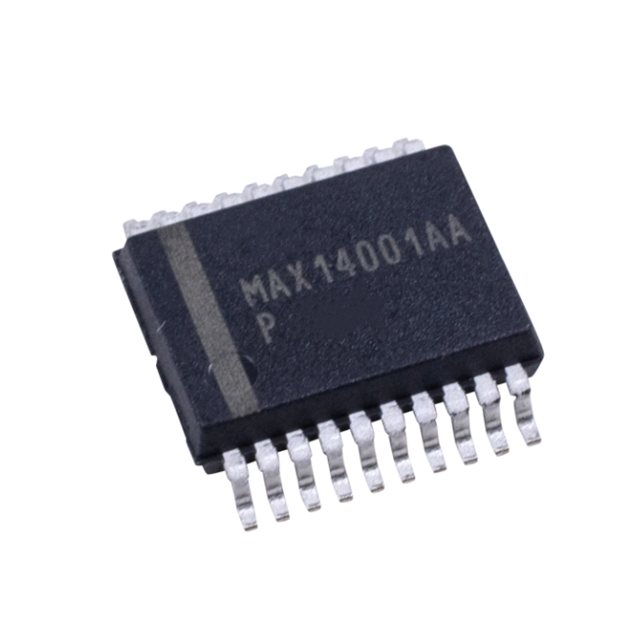

The MAX14001AAP is an isolated, single-channel 10-bit analog-to-digital converter (ADC) with a programmable voltage comparator and surge current control, optimized for configurable binary input applications. The MAX14001AAP offers 3.75kVRMS integrated isolation on the binary input side (field side) and the comparator output /SPI side (logic side). Integrated, isolated, DC-DC converters power all field-side circuits, so field-side diagnostics can be performed even without input signals. Its 20-pin SSOP package offers a creepage distance and clearance of 5.5mm, with a Class II CTI rating.

The main specifications of MAX14001AAP are as follows:

Digit number: 10

Sampling rate (per second) : 10k

Input number: 1

Input type: Single-ended

Data interface: SPI

Configuration: S/H-ADC

Ratio -S /H:ADC: 1:1

Number of A/D converters: 1

Architecture: SAR

Reference types: External, Internal

Voltage - Power supply, simulation: 3V to 3.6V

Voltage - Power supply, digital: 1.71V to 5.5V

Feature: -

Operating temperature: -40°C to 125°C

Package/Shell: 20-SSOP

Installation type: Surface mount type

In addition, the MAX14001AAP is suitable for application scenarios that require high-precision and low-power isolated ADCs, such as industrial control and data acquisition systems. Its high precision and low power consumption make it excel in demanding applications ‌.
