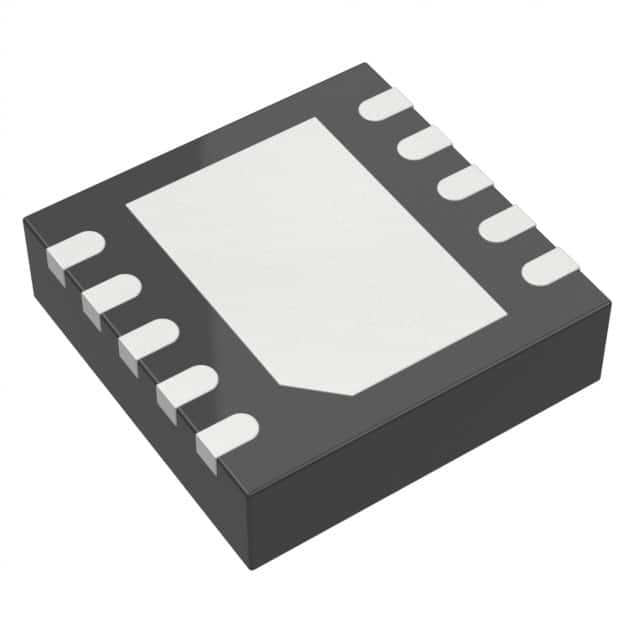

The LTC3388EDD-3 is a high-efficiency, step-down DC/DC converter with an internal high-end and synchronous power switch. This device only absorbs 720nA (typical value) of DC power supply current when there is no load and maintains the output voltage regulation function. Furthermore, the LTC3388EDD-3 can provide a load current of 50mA and also has an under-voltage lockout (UVLO) function, which is used to disable the converter and maintain a low static current state when the input voltage drops below 2.3V.

Main parameters

Topological structure: Buck

Output voltage: 2.8V, 3V, 3.3V, 5V

Output current: 50 mA

Number of Output terminals: 1 Output

Input voltage - Minimum: 2.7V

Input voltage - Maximum value: 20 V

Static current: 2 uA

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Package/Box: DFN-10

Application field

Due to its characteristics of low static current and high efficiency, LTC3388EDD-3 is highly suitable for the following application fields:

Battery-powered devices ‌ : such as remote monitors and wireless sensor networks (WSN), require long standby time and short pulse load power.

Energy Harvesting applications ‌ : Environmental energy harvesting systems such as thermoelectric generators, piezoelectric elements, photovoltaic elements and current elements.

Industrial control power supply ‌ : Industrial control systems that require high efficiency and low power consumption ‌.
