The LT8648SPJV is A 42 V, 15 A synchronous step-down voltage regulator that adopts the second-generation Silent Switcher architecture, minimizing EMI emissions and achieving high efficiency at high switching frequencies as much as possible. It includes an integrated bypass capacitor to optimize all internal fast current loops and easily achieves the advertised EMI performance by eliminating layout sensitivity. In addition, the LT8648SPJV device package features an exposed back for connecting heat sinks, which can be used to significantly enhance thermal performance.

Characteristics and advantages

The main features of the LT8648SPJV voltage stabilizer include:

Silent Switcher®2 architecture

Achieve ultra-low EMI radiation on any PCB

Eliminate PCB layout sensitivity

Internal bypass capacitors can reduce radiated EMI

Optional spread spectrum modulation

High efficiency at high frequency

The efficiency is as high as 95.5% at 1MHz, 12VIN to 5VOUT

The efficiency is as high as 93% at 2MHz, 12VIN to 5VOUT

Wide input voltage range: 3V to 42V

15A output current

Low quiescent current burst mode ® operation

Adjust 12VIN to 5VOUT with 100μA IQ

Output ripple < 10 MVp-p

External compensation: Fast transient response and current sharing

Fast minimum switch conduction time: 25ns

Low pressure difference under all conditions: 35mV (at 1A)

Forced continuous mode

Adjustable and synchronous: 200kHz to 2.2MHz

The output soft start and power supply are normal

It can safely withstand high reverse current

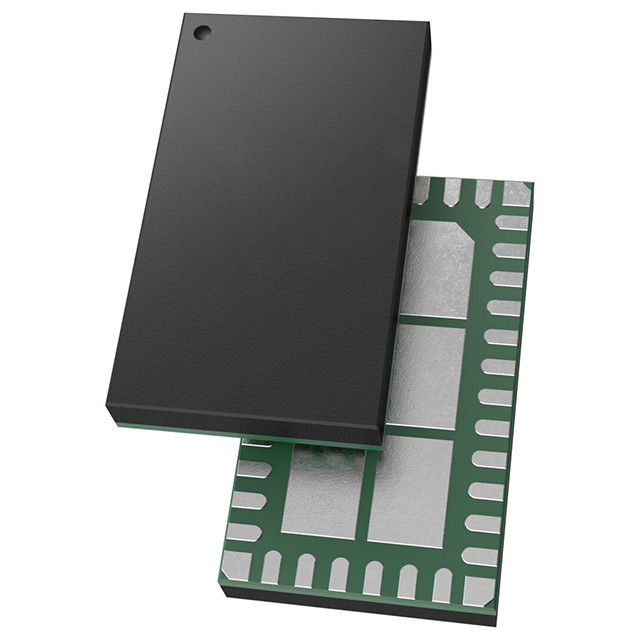

36-pin 7mm × 4mm LQFN package (LT8648S) and bare back package (LT8648SP)

Complies with the EC-Q100 standard and is suitable for automotive applications

Application scenarios

Automobiles and industrial supplies

General pressure-reducing type
