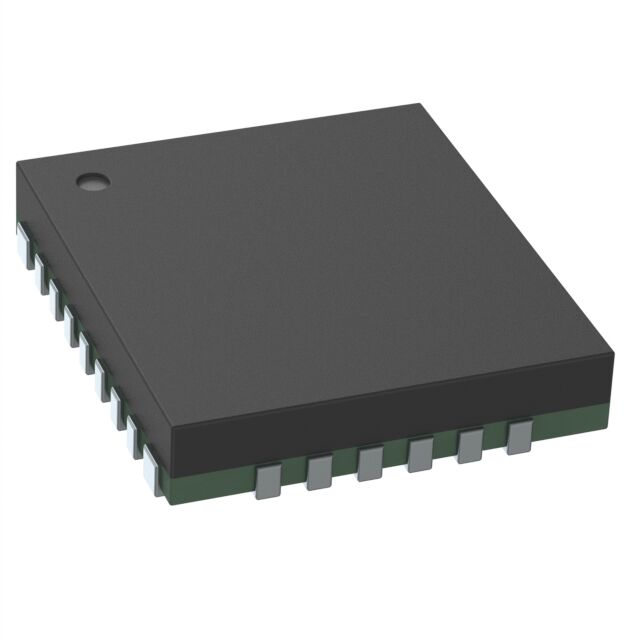

The LT7184SRV is a dual-output monolithic integrated multi-phase DC/DC synchronous step-down regulator that can simultaneously provide up to 7A of continuous current from two channels and support loads ranging from -8A to +9A in either channel. The LT7184SRV adopts the second-generation Silent Switcher® architecture with an integrated VIN bypass capacitor, which enables fast, clean and low overshoot switching edges, providing high efficiency at high switching frequencies while minimizing electromagnetic interference (EMI) radiation.

The main features of the LT7184SRV device include:

Silent Switcher® 2 architecture: Achieving compact, efficient, and low EMI solutions

PMBus/I2C serial interface

Telemetry reads back include: VOUT, IOUT, VIN, chip grain temperature, and faults

Programmable voltage, current limiting, digital soft start/stop, sequencing, UV/OV, phase, frequency (up to 4MHz), loop compensation

Integrated EEPROM with fault event logs

The key parameters can be set by configuring resistors and can be operated without programming

At voltages ranging from 0.6V to 1.375V, the output voltage accuracy within the entire temperature range is ±0.25%

PolyPhase® load distribution with up to eight phases

Wide VIN range: up to 2.9V or 1.5V (up to 16V for EXTVCC)

1MHz, 12VIN to 3.3VOUT

VOUT range: 0.4V to 5.5V (up to 85% x VIN)

Differential remote VOUT detection

External frequency synchronization

36-pin (4mm x 5mm) LQFN package

Application scenarios

The LT7184SRV voltage regulator is widely used in the following scenarios:

Communication, storage and industrial systems

Data center and solid-state drive power supplies
