The TPS92682QRHMRQ1 is a dual-channel peak current mode controller with an SPI communication interface controller that is programmable to operate in constant voltage (CV) or constant current (CC) mode. In CV mode, the TPS92682-Q1 can be programmed to operate as two independent or dual channel controllers. as two independent or dual-phase boost regulators. The output voltage can be programmed with an external resistor divider and an SPI programmable 8-bit DAC. In CC mode, the device can support dual-channel boost or buck LED driver topologies.LED currents can be dimmed using analogue or PWM dimming techniques. The analogue dimming range exceeds 28:1. 8-bit DAC is programmable. PWM dimming of the LED current can be achieved by direct modulation of the PWM input pin or by using the SPI programmable 10-bit PWM counter. The optional PDRV gate driver output can be used to drive an external P-channel family of MOSFETs.The TPS92682QRHMRQ1 incorporates advanced SPI-programmable diagnostics and failsafe mechanisms including: cycle-by-cycle current limiting, output over- and under-voltage protection, ILED over-current protection, and thermal warning. The device also includes an open-drain fault indicator output.

Product Attributes

Type: DC DC Controller

Topology: Flyback, SEPIC, Buck, Boost

Internal Switch: None

Number of Outputs: 2

Voltage - Supply (minimum): 6.5V

Voltage - Supply (Max): 65V

Voltage - Outputs: - Voltage - Outputs: - Voltage - Outputs: - Voltage

Current - Outputs/Channels: -

Frequency: 100kHz ~ 700kHz

Dimming: Analogue, PWM

Applications: Automotive Grade, Lighting

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

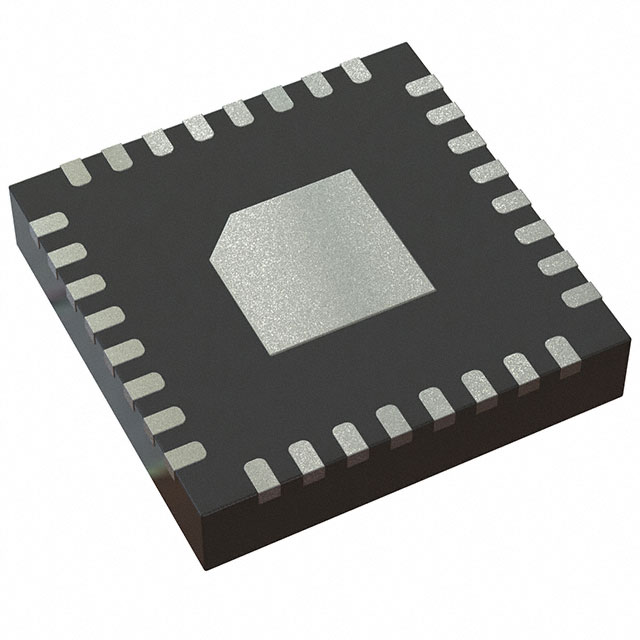

Package/Housing: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (5x5)

Applications

• Automotive Front Lighting

• Emergency vehicles

• General Lighting
