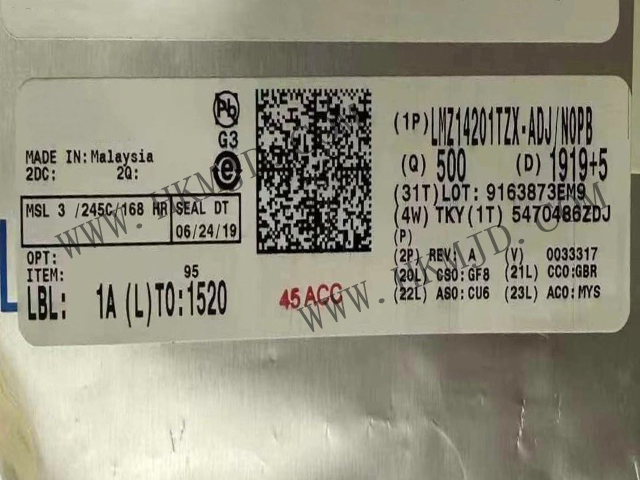

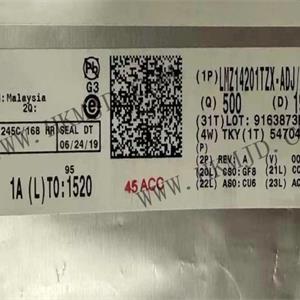

For picture reference, please see the specifications
< >

Commodity Model:LMZ14201TZX-ADJ

Trade Name:DC/DC Power Module

Brand:TI

Particular Year:19+

Package:TO-PMOD-7

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
LMZ14201TZX-ADJ
Package
TO-PMOD-7
Describe
SIMPLE SWITCHER® 6V to 42V, 1A power module in a leaded surface mount TO package

Product Description

The LMZ14201TZX-ADJ SIMPLE SWITCHER power module is an easy-to-use buck DC-DC solution that delivers excellent power conversion efficiency, line and load regulation, and output accuracy to drive loads up to 1A. The LMZ14201TZX-ADJ features an innovative package that improves thermal performance and enables both manual and machine soldering.


The LMZ14201TZX-ADJ accepts input voltage rails ranging from 6V to 42V, providing an adjustable and highly precise output voltage as low as 0.8V. The LMZ14201 requires only 3 external resistors and 4 external capacitors to complete the power solution. The LMZ14201TZX-ADJ is a reliable and stable design with the following protection features: thermal shutdown, input under-voltage lockout, output over-voltage protection, short-circuit protection, output current limiting, and the ability to start up to a pre-biased output. A single resistor adjusts the switching frequency to 1MHz.


LMZ14201TZX-ADJ Features

Integrated shielded inductor

Simple printed circuit board (PCB) layout and routing

Flexible start-up sequencing using external soft-start and precise enable

Prevents inrush current and faults such as input under-voltage lockout (UVLO) and output short-circuit

Junction temperature range from -40°C to 125°C

Single exposed pad and standard pinout for simple assembly and manufacturing

Fast transient response for powering field-programmable gate arrays (FPGAs) and application-specific integrated circuits (ASICs)

Low output voltage ripple

Pin-to-pin compatible series:

LMZ14203/2/1 (42V maximum 3A, 2A, 1A)

Fully enabled for Webench® power design tools


Electrical specifications

6W maximum total output power

Up to 1A output current

Input voltage range: 6V to 42V

Output voltage range: 0.8V to 6V

Efficiency up to 90%


LMZ14201TZX-ADJ Application Scope

Point-of-load conversion from 12V and 24V input power rails

Time-critical projects

Space-constrained/high-temperature-demand applications

Negative output voltage applications
