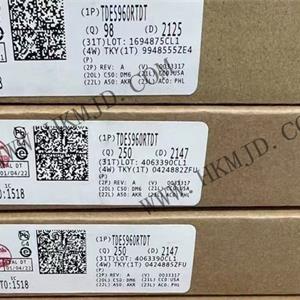

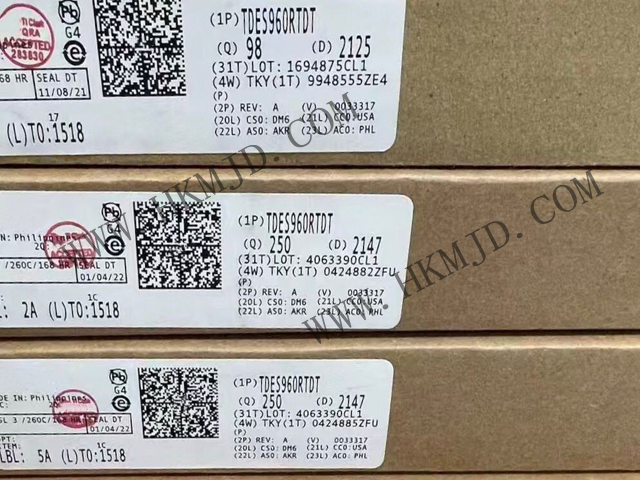

For picture reference, please see the specifications
< >

Commodity Model:TDES960RTDT

Trade Name:Deserialiser

Brand:TI

Particular Year:21+

Package:VQFN-64

Delivery Date:New and Original

Stock: 1500pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TDES960RTDT
Package
VQFN-64
Describe
4.16 Gbps MIPI® CSI-2 V³Link deserialiser quad hub for high-speed sensors

Product Description

The TDES960RTDT is a multi-functional sensor hub that collects serial sensor data from four independent video data streams via the V 3Link interface. When paired with the TSER953 serialiser, the TDES960RTDT can receive data from sensors (such as imagers that support full HD 1080p/2MP resolution at a frame rate of 60Hz). Data is received and aggregated to an output port compliant with the MIPI CSI-2 standard and interconnected with downstream processors. The device also features a second MIPI CSI-2 output port, which provides additional bandwidth or a second duplicate output for data logging and parallel processing.


The TDES960RTDT includes four V 3Link deserializers, each supporting connection via cost-effective 50Ω single-ended coaxial or 100Ω differential STP cables. The receive equaliser automatically adapts to compensate for cable loss characteristics, including degradation over time.


Each V 3Link interface also includes a separate low-latency bidirectional control channel that continuously transmits I2C, GPIO, and other control information. General-purpose I/O signals, such as those required for camera synchronisation and diagnostic features, can also utilise this bidirectional control channel.


The TDES960RTDT is housed in a cost-effective and space-saving 64-pin VQFN package.


Features of the TDES960RTDT

Four 4.16 Gbps deserialiser hubs simultaneously aggregate data from up to four sensors

Supports 2-megapixel sensors, enabling full HD 1080p resolution at 60 Hz frame rate

Device temperature range: -20°C to +85°C operating temperature range

Precise multi-camera synchronisation

Compliant with MIPI D-PHY Version 1.2/CSI-2 Version 1.3 standards

2 MIPI CSI-2 output ports

Each CSI-2 port supports 1, 2, 3, or 4 data channels

CSI-2 data rate scalable: each data channel supports 400Mbps/800Mbps/1.2Gbps/1.5Gbps/1.6Gbps

Port replication mode

Ultra-low data and control path latency

Supports single-ended coaxial (including power over cable (PoC)) or shielded twisted pair (STP) cables

Adaptive receive equalisation

Dual I2C ports with enhanced fast mode (up to 1 Mbps)

Flexible GPIO for sensor synchronisation and diagnostics

Compatible with the TSER953 serialiser

Internal programmable precision frame synchronisation generator

Line fault detection and advanced diagnostics


Applications of the TDES960RTDT

• Appliances

• Video surveillance

• Elevators and escalators

• Industrial robots

• Machine vision

• Patient monitoring and diagnostics

• Imaging
